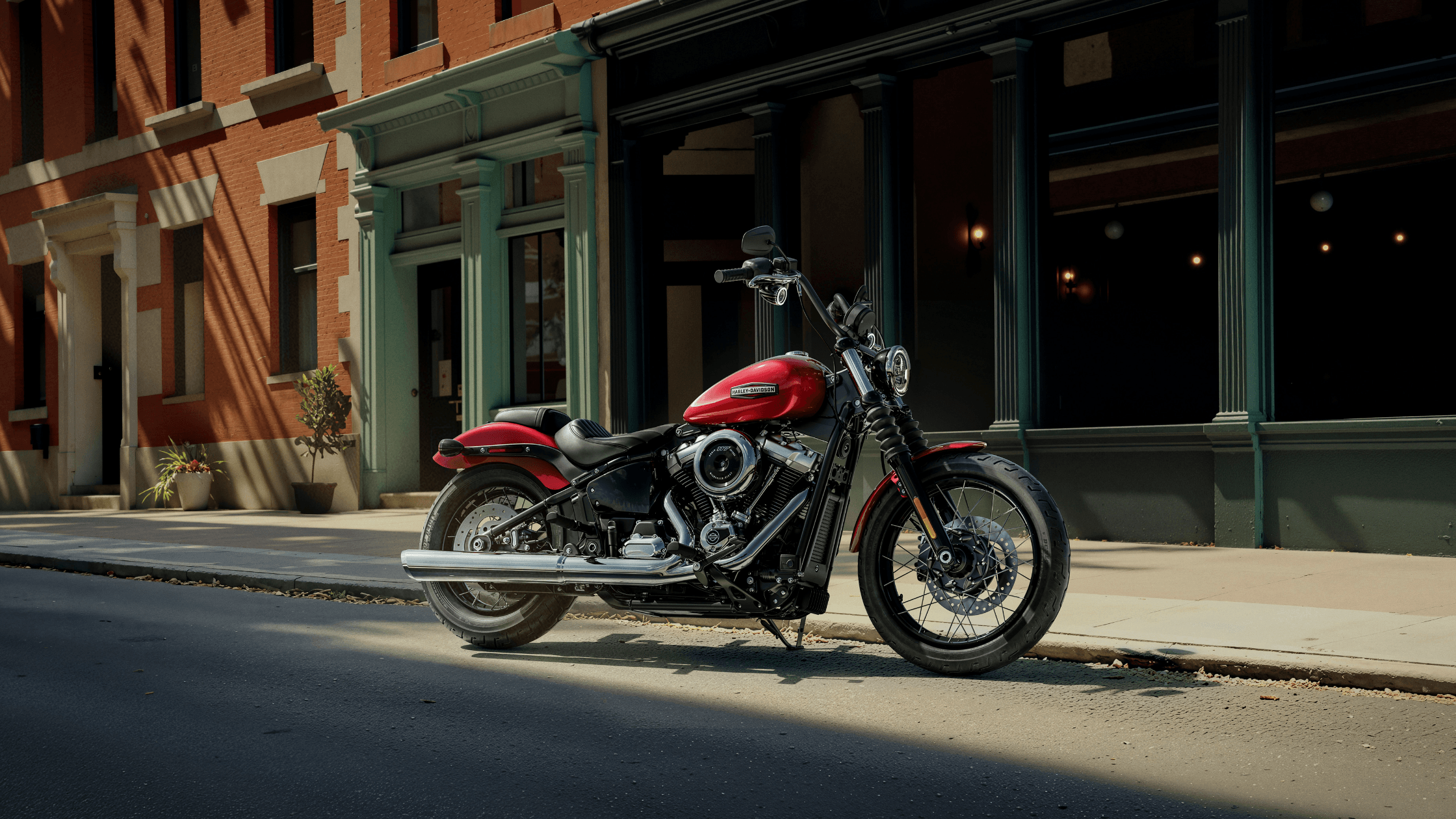

The 2026 Harley-Davidson® Street Bob® is designed as a stripped-down performance cruiser that prioritizes mechanical function, balanced geometry, and integrated rider technology. This model combines a large-displacement V-twin engine with a rigid steel chassis and a focused electronics package intended to support control and stability without excessive complexity. Its engineering emphasizes torque delivery, responsive handling, and straightforward rider information. The motorcycle avoids unnecessary infotainment systems and instead concentrates on core performance metrics such as power output, suspension configuration, drivetrain efficiency, and braking capability. The result is a motorcycle that maintains classic styling while integrating current safety and electronic management systems. This article presents a detailed technical examination of the model’s specifications, focusing strictly on measurable features and functional design elements.
Engine Configuration and Performance Output
The 2026 Harley-Davidson® Street Bob® uses the Milwaukee-Eight® 117 Classic engine. This engine configuration features a displacement of 117 cubic inches, equivalent to 1,923 cc. The architecture relies on pushrod-operated overhead valves with hydraulic self-adjusting lifters, supporting efficient valve operation with reduced maintenance requirements. The four-valve-per-cylinder arrangement contributes to controlled airflow and consistent combustion efficiency. The engine uses a bore of 4.075 inches and a stroke of 4.5 inches, creating a long-stroke design that supports torque-focused performance characteristics.
The compression ratio is specified at 10.3:1. Fuel delivery is managed through Electronic Sequential Port Fuel Injection, which regulates airflow and fuel mixture for consistent throttle response. The intake system includes a 9-inch round air cleaner fitted with washable fiberglass filter media. The exhaust system uses a 2-into-1 layout with a catalyst located in the header section. Engine lubrication is handled through a pressurized dry-sump system paired with an oil cooler, supporting temperature stability during extended operation.
Performance figures show engine torque rated at 120 ft-lb at 2,500 rpm. Power output is listed at 98 horsepower, or 73 kW, at 4,600 rpm. These values indicate a torque-heavy delivery profile that supports immediate acceleration and reduced need for frequent shifting. This configuration provides consistent mechanical response across urban and highway riding conditions.
Drivetrain Engineering and Transmission Characteristics
The drivetrain combines a chain-driven primary system with a belt final drive. The primary drive ratio is 34/46, while the final drive ratio is 32/66. This setup balances durability with efficient power transfer and reduced maintenance requirements compared with chain-based final drive systems. The clutch assembly uses a mechanical, 10-plate wet configuration with assist and conventional operation. This assists lever effort while maintaining strong engagement under load.
The transmission is a 6-Speed Cruise Drive® unit. Gear ratios are progressively spaced to maintain torque availability while supporting relaxed engine speeds at higher velocities. The overall first gear ratio is 9.311, while sixth gear is configured at 2.79. Intermediate ratios allow gradual power transfer and predictable acceleration. The transmission system complements the torque characteristics of the Milwaukee-Eight® engine by allowing riders to remain in higher gears during moderate-speed operation without excessive strain on the engine.
Frame Design and Structural Geometry
The 2026 Harley-Davidson® Street Bob® uses a mild steel tubular frame with a rectangular-section backbone. The frame construction includes stamped, forged, and cast junction components joined through MIG welding. Aluminum forged fender supports reduce weight in non-structural areas while preserving overall rigidity. This frame configuration is intended to provide predictable stability during acceleration, braking, and cornering.
Chassis geometry plays an important role in handling behavior. The steering head rake is set at 30 degrees, matching the fork angle at 30 degrees. Trail measurement is specified at 6.2 inches, and the wheelbase extends to 64.2 inches. These measurements contribute to directional stability while maintaining controlled steering input at low speeds. The overall length of the motorcycle is 91.3 inches, with a width of 36.4 inches and a total height of 45.7 inches.
Seat height measurements are designed to support rider accessibility. The laden seat height is listed at 25.8 inches, while the unladen seat height is 26.8 inches. Static ground clearance measures 4.9 inches. These dimensions support low-speed maneuvering and rider confidence during stopping and parking procedures.
Suspension Components and Ride Control
Front suspension uses a dual-bending valve 49 mm telescopic fork equipped with dual-rate springs and aluminum fork triple clamps. This design manages compression and rebound effectively during varying road conditions. The fork configuration aims to deliver consistent damping while maintaining structural strength under braking loads.
Rear suspension consists of a hidden free-piston coil-over monoshock with a 43 mm stroke. Cam-style preload adjustment allows riders to modify suspension response based on weight and riding requirements. Suspension travel measures 5 inches at the front and 3.4 inches at the rear. This setup supports controlled movement while maintaining chassis stability under acceleration and cornering forces.
The swingarm uses mild steel tubular construction with stamped cross-members and forged axle junctions. The removable belt spacer simplifies serviceability while maintaining alignment accuracy. Combined suspension components contribute to a balanced ride profile intended for street use with predictable handling feedback.
Wheel, Tire, and Brake Systems
Wheel construction includes black Annihilator cast aluminum designs. Front wheel diameter measures 19 inches with a width of 2.5 inches, while the rear wheel measures 16 inches with a width of 3 inches. Tire specifications include Dunlop® Harley-Davidson® Series bias blackwall models. The front tire size is 100/90B19, and the rear tire size is 150/80B16. This sizing supports stability and balanced contact patch distribution.
Braking hardware consists of a 4-piston fixed front caliper and a 2-piston floating rear caliper. Rotor design uses solid, uniform expansion construction. Front rotor diameter is 11.8 inches with a thickness of 0.2 inches. The rear rotor measures 11.5 inches with a thickness of 0.23 inches. Anti-lock Braking System functionality is provided as standard equipment, supporting controlled braking performance under varied traction conditions.
Lean angle capability is rated at 28.5 degrees on both the left and right sides. This specification indicates practical cornering capability while maintaining cruiser-style ergonomics and chassis configuration.
Electrical System and Instrumentation Interface
The electrical system incorporates a sealed, maintenance-free absorbed glass mat battery rated at 12V, 17.5Ah, and 310 CCA at 0°F. Charging is handled through a three-phase 48-amp system producing 364 watts at 13 volts and 900 rpm, with maximum output reaching 624 watts at 2,000 rpm. Starting is achieved through a 1.6 kW electric starter motor with solenoid shift engagement.
Lighting components use LED technology throughout. The headlamp integrates low beam, high beam, and signature position lighting. Tail and stop signals use bullet-style LED units, and front and rear turn signals are also LED-based. These components improve visibility while reducing electrical load compared with traditional bulb systems.
Instrumentation is centered on a 4-inch analog speedometer combined with a digital information display. The interface provides gear indication, odometer, fuel level, ride modes, heated gear information, traction control status, ABS indicators, tire pressure monitoring, cruise control display, clock, trip information, range calculation, and tachometer readout. This layout provides essential operational data without reliance on complex multimedia systems.
A USB C-Type power outlet supplies 5V at 2.4 amps, allowing charging of compatible devices during operation. Infotainment features such as built-in audio systems, navigation screens, and Bluetooth® multimedia connectivity are not included, reinforcing a minimalist technical approach.
Rider Safety Technology and Control Systems
The safety package integrates electronic rider aids focused on traction and stability management. Standard systems include Anti-lock Braking System functionality, Traction Control System, Drag-torque Slip Control System, and Tire Pressure Monitoring System. These components assist with maintaining stability during braking and throttle transitions.
Cornering-focused safety enhancements are also included. Cornering Enhanced ABS, Cornering Enhanced Traction Control, and Cornering Drag-Torque Slip Control operate by monitoring motorcycle dynamics during lean conditions and adjusting system intervention to maintain consistent control. Electronic linked braking, vehicle hold control, and wheel lift mitigation are not installed on this model. The overall configuration emphasizes essential safety technologies that directly support rider control without adding unnecessary mechanical complexity.
Fuel Capacity, Efficiency, and Operational Metrics
The fuel tank capacity is rated at 3.5 gallons, with a reserve fuel capacity warning activated at approximately 1 gallon remaining. Estimated fuel economy is listed at 47 mpg under city and highway testing conditions. Oil capacity with the filter installed measures 5 quarts, transmission capacity is 1 quart, and primary chain case capacity is 1.25 quarts. These values support stable lubrication and predictable maintenance intervals.
Weight measurements show 622 pounds as shipped and 646 pounds in running order. Gross Vehicle Weight Rating is specified at 1,160 pounds. Front axle rating is 450 pounds, while the rear axle rating is 730 pounds. These figures provide a clear framework for load distribution and operational limits.
