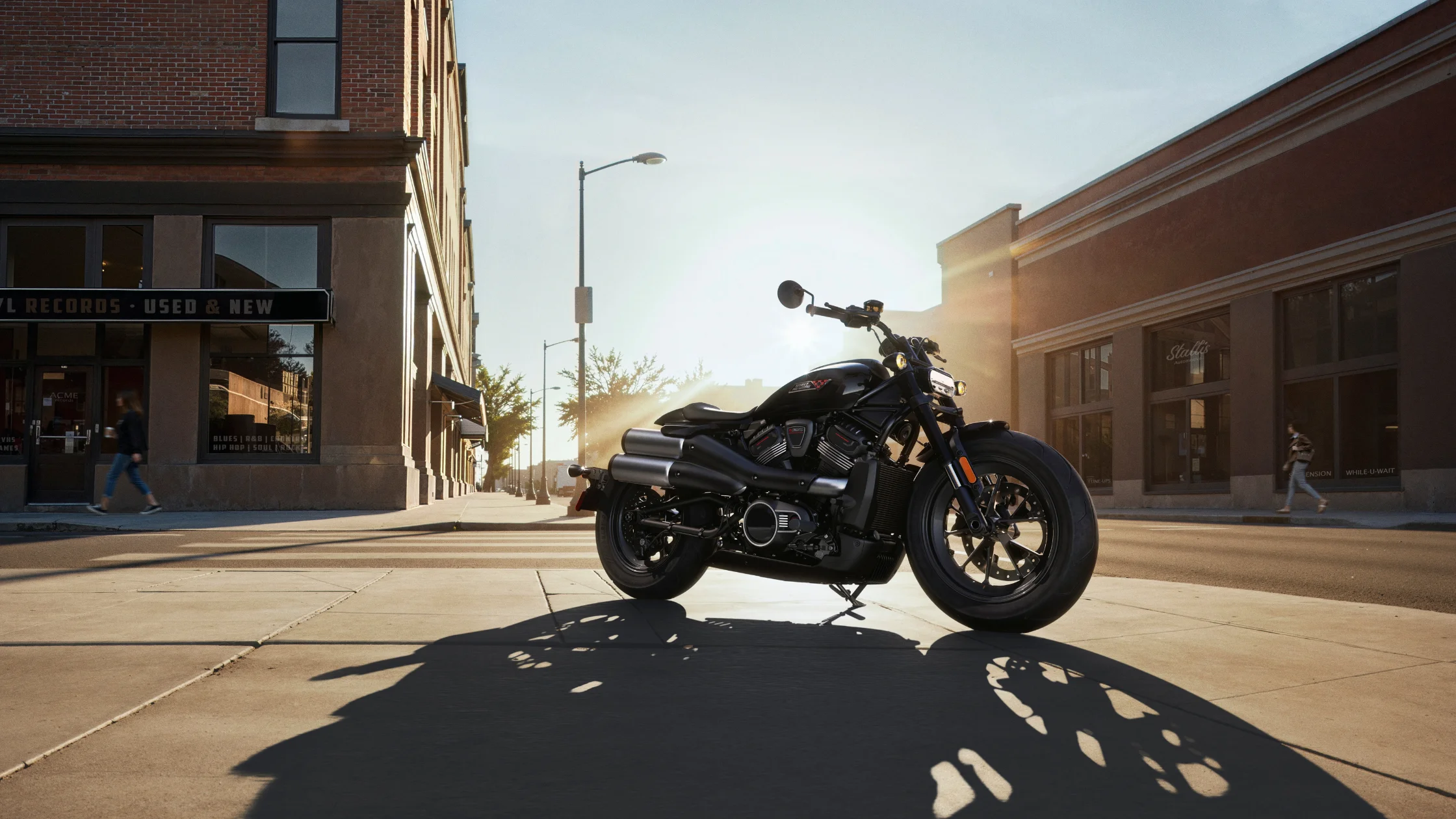

The 2026 Harley-Davidson® Sportster® S is engineered as a performance-focused motorcycle that integrates a high-output engine, a structurally efficient chassis, and a comprehensive suite of rider-oriented technologies. This model uses the Revolution® Max 1250T engine, paired with a six-speed transmission and a belt-driven final drive system. Its configuration emphasizes controlled power delivery, mechanical efficiency, and consistent handling characteristics.
High-Output Revolution® Max 1250T Engine Configuration
The engine is a liquid-cooled Revolution® Max 1250T V-twin with a displacement of 1,252 cubic centimeters, equivalent to 76.4 cubic inches. It features a chain-driven dual overhead camshaft design with four valves per cylinder. Hydraulic self-adjusting lifters reduce the need for manual adjustment, while variable valve timing is applied to both intake and exhaust camshafts. This configuration improves combustion efficiency across varying engine speeds.
The bore measures 4.134 inches, and the stroke measures 2.846 inches. These dimensions contribute to the engine’s ability to generate a combination of high-revving horsepower and sustained torque. The compression ratio is rated at 12.0:1, indicating a design that supports increased thermal efficiency and stronger combustion output. Fuel delivery is managed through Electronic Sequential Port Fuel Injection, which ensures precise metering of fuel based on throttle input and engine conditions.
The intake system uses a downdraft design with tuned velocity stacks and a washable filter element. This arrangement enhances airflow into the combustion chamber. The exhaust system is configured as a 2-into-1-into-2 layout with an integrated catalyst positioned in the muffler. This design supports emissions control while maintaining a consistent exhaust flow. The lubrication system is a semi-dry sump configuration, which improves oil management and supports stable operation during varying riding conditions.
Quantified Power and Torque Output
The 2026 Harley-Davidson® Sportster® S produces 121 horsepower at 7,500 revolutions per minute and 93 pound-feet of torque at 6,000 revolutions per minute. These values indicate a performance profile that delivers strong acceleration across a broad portion of the rev range. Torque is available at mid-range engine speeds, while peak horsepower is achieved at higher revolutions. This distribution allows for flexible operation across urban and highway riding conditions.
Lean angle capability is measured at 35 degrees on both the right and left sides. This specification reflects the motorcycle’s capacity to maintain traction and stability during cornering. Torque measurement follows the J1349 testing standard, while lean angle is measured using the J1168 method. These standardized testing protocols ensure consistency in performance evaluation.
Transmission, Clutch, and Final Drive Mechanics
The drivetrain includes a six-speed transmission designed to manage the engine’s output efficiently. The primary drive uses a gear system with a 49/89 ratio. Final power transfer is handled by a belt drive with a 34/80 ratio. This configuration supports smooth power delivery and reduces maintenance requirements compared to chain-driven systems.
The clutch is a mechanical, eight-plate wet design with assist and slip functionality. The assist mechanism reduces lever effort during operation, while the slip function minimizes rear wheel instability during aggressive downshifting. Gear ratios are structured to provide a progressive transition between speeds. First gear has an overall ratio of 12.21, followed by 9.022 in second, 6.994 in third, 5.641 in fourth, 4.731 in fifth, and 4.131 in sixth. This sequence allows for controlled acceleration and efficient cruising at higher speeds.
Structural Frame and Chassis Composition
The chassis uses a stressed-member design that incorporates the engine as a structural element. The frame is constructed from high-strength low-alloy steel in a trellis configuration. It includes stamped, cast, and forged junctions that are assembled using MIG welding techniques. An aluminum forged mid-structure is integrated into the frame to enhance rigidity while minimizing weight.
The swingarm is also constructed from high-strength low-alloy steel and features tubular sections with a stamped cross-member and forged axle junctions. This design supports stability under acceleration and braking loads. The combination of materials and construction methods results in a chassis that maintains structural integrity while supporting responsive handling characteristics.
Fully Adjustable Suspension Components
The front suspension uses a 43-millimeter inverted fork. It includes adjustability for compression damping, rebound damping, and spring preload. Aluminum fork triple clamps provide additional rigidity. The rear suspension consists of a linkage-mounted monoshock with a piggyback reservoir. It also includes compression, rebound, and hydraulic preload adjustability.
Front suspension travel is measured at 3.6 inches, while rear suspension travel is 3.2 inches. These values indicate a setup that prioritizes direct feedback and controlled movement. The adjustable nature of both front and rear components allows riders to modify suspension behavior to match load conditions and riding preferences.
Dimensional Specifications and Geometry
The motorcycle has an overall length of 89.4 inches, a width of 33.1 inches, and a height of 42.7 inches. The wheelbase measures 59.8 inches. Steering geometry includes a rake angle of 30 degrees and a fork angle of 28 degrees. The trail is specified at 5.8 inches. These values contribute to a balance between stability and steering responsiveness.
Seat height is listed at 28.9 inches when laden and 30.1 inches when unladen. Static ground clearance is measured at 3.5 inches. These dimensions support a lower center of gravity and improved rider control during low-speed maneuvers. The motorcycle’s weight is 487 pounds as shipped and 502 pounds in running order. The Gross vehicle weight rating is 922 pounds, with front and rear axle ratings of 359 pounds and 595 pounds, respectively.
Wheel and Tire Configuration
The 2026 Harley-Davidson® Sportster® S uses aluminum cast wheels finished in satin black. The front wheel has a diameter of 17 inches and a width of 4.5 inches. The rear wheel measures 16 inches in diameter and 5 inches in width. Tire specifications include a 160/70R17 73V front tire and a 180/70R16 77V rear tire. Both tires are part of the Dunlop® Harley-Davidson® Series radial lineup.
This configuration supports directional stability and traction under acceleration. The wider rear tire increases the contact patch, while the front tire maintains steering precision. The radial construction of the tires contributes to consistent performance under varying loads and speeds.
Braking System and Control Features
The braking system uses a radially mounted monoblock four-piston caliper on the front wheel, paired with a single floating rotor measuring 12.6 inches in diameter. The rear brake uses a floating single-piston caliper with a 10.2-inch rotor. Rotor thickness for both front and rear is 0.2 inches.
The Anti-lock Braking System is included as standard equipment. This system prevents wheel lock during sudden braking and helps maintain control. The braking hardware is designed to provide a consistent stopping force while accommodating the motorcycle’s power output.
Integrated Rider Safety Technologies
The 2026 Harley-Davidson® Sportster® S includes multiple electronic rider safety systems. The Traction Control System manages rear-wheel slip during acceleration. Drag-torque Slip Control System reduces the likelihood of rear wheel lock during deceleration. The Tire Pressure Monitoring System provides continuous feedback on tire pressure levels. Wheel Lift Mitigation helps maintain stability during rapid acceleration.
Cornering-specific enhancements include a Cornering Enhanced Anti-lock Braking System and a Cornering Enhanced Traction Control System. The Cornering Drag-Torque Slip Control System adjusts engine braking behavior during lean conditions. Enhanced Lift Mitigation is also included. These systems use sensor data to adjust performance parameters based on lean angle and dynamic conditions.
Electrical System and Lighting Components
The electrical system uses a sealed absorbed glass mat battery rated at 12 volts and 12 amp-hours, with 225 cold cranking amps at zero degrees Fahrenheit. Charging is handled by a three-phase 45-amp system. It produces 300 watts at 1,200 revolutions per minute and a maximum of 585 watts at 2,250 revolutions per minute.
The starting system uses a 0.9-kilowatt electric starter with direct drive engagement. Lighting components include a full LED setup. The headlamp features low- and high-beam functionality with signature position lighting. Rear lighting and turn signals also use LED technology. This configuration improves visibility and reduces power consumption.
Instrumentation and Connectivity Interface
The motorcycle uses a 4-inch color TFT display with a viewable area of 102 millimeters. The display provides information including speedometer, gear position, odometer, fuel level, clock, trip data, ambient temperature, low-temperature alert, side-stand alert, tip-over alert, cruise indication, range, and tachometer readings.
Bluetooth® connectivity enables integration with a mobile device. Functions include access to phone calls, music, and navigation through the Harley-Davidson® application. The system supports headset-based communication for rider and passenger use. USB-C connectivity allows for device charging and instrument updates, with output rated at 5 volts and up to 3 amps.
Fluid Capacities and Efficiency Metrics
Fuel capacity is 3.1 gallons, with a reserve warning at approximately 0.8 gallons. Oil capacity with filter is 4.75 quarts, and coolant capacity is 2.32 quarts. Estimated fuel economy is rated at 49 miles per gallon under combined city and highway conditions. These values support efficient operation while maintaining the motorcycle’s performance characteristics.
