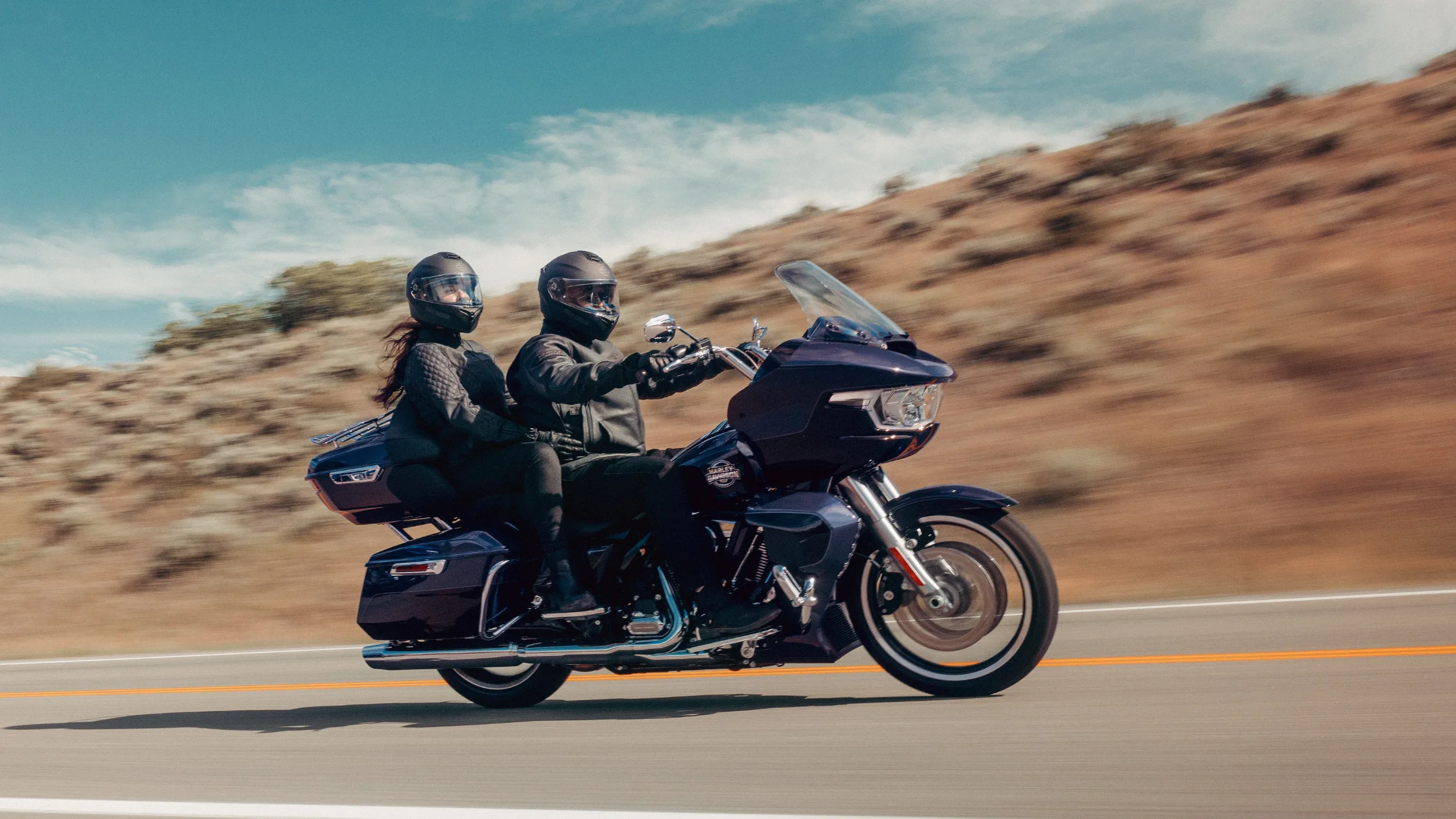

The 2026 Harley-Davidson® Road Glide® Limited is a touring motorcycle designed to combine large-displacement V-Twin performance, long-distance comfort, integrated technology, and advanced rider assistance systems within a single platform. Built around the FLTRXL configuration, the model incorporates the Milwaukee-Eight® VVT 117 engine, a six-speed transmission, a substantial luggage system, and a comprehensive suite of electronic safety technologies. The motorcycle also integrates modern infotainment features, LED lighting, navigation capability, and adjustable suspension components intended to support extended travel.
Engine and Powertrain
The 2026 Harley-Davidson® Road Glide® Limited is powered by the Milwaukee-Eight® VVT 117 engine with a displacement of 117 cubic inches, or 1,923 cc. This powerplant utilizes pushrod-operated overhead valves with hydraulic self-adjusting lifters and four valves per cylinder. The engine features a bore of 4.075 inches and a stroke of 4.5 inches, creating the displacement and operating characteristics associated with the Milwaukee-Eight® platform. A compression ratio of 10.3:1 contributes to the engine's overall performance profile while maintaining compatibility with its electronic fuel delivery system. Together, these specifications establish the foundation for the motorcycle's touring-oriented performance capabilities.
Fuel Delivery and Air Management
Fuel delivery is handled through Electronic Sequential Port Fuel Injection (ESPFI), which provides precise metering of fuel to the engine. This system works in conjunction with a fiberglass washable air cleaner that supports intake airflow while allowing for continued serviceability. The combination of electronic fuel injection and dedicated intake filtration contributes to consistent engine operation across varying riding conditions. Fuel capacity measures 6 gallons, providing substantial onboard fuel storage for extended travel. A fuel injection warning-light reserve capacity of 1 gallon offers additional operational awareness before refueling becomes necessary.
Exhaust and Lubrication Systems
The 2026 Harley-Davidson® Road Glide® Limited uses a 2-1-2 dual exhaust system equipped with tapered mufflers. This configuration supports engine operation while maintaining the motorcycle's touring-focused design. Lubrication is provided through a pressurized dry-sump system that manages oil circulation independently from the crankcase. Engine oil capacity with filter is 5 quarts, supporting proper lubrication during extended operation. Additional fluid capacities include 1 quart for the transmission, 1.1 quarts for the primary chain case, and 0.82 quarts of coolant.
Performance Specifications
Performance figures reflect the capabilities of the Milwaukee-Eight® VVT 117 engine. The motorcycle produces 131 ft-lb of torque at 3,250 rpm using the J1349 testing methodology. Peak power output is rated at 106 horsepower, or 79 kW, at 4,600 rpm. These figures indicate strong low- and mid-range engine output characteristics that align with the motorcycle's touring mission. Estimated fuel economy is listed at 45 mpg, providing an efficient balance between performance and fuel consumption for long-distance riding applications.
Drivetrain and Transmission
The drivetrain of the 2026 Harley-Davidson® Road Glide® Limited combines traditional Harley-Davidson® engineering with modern clutch and transmission technology. Power transfers from the engine through a chain primary drive featuring a 34/46 ratio. Final drive duties are handled by a belt system utilizing a 32/68 ratio. This combination supports smooth power delivery while maintaining the durability associated with belt-driven touring motorcycles. The drivetrain architecture works as a unified system to transmit engine output efficiently to the rear wheel.
Assist and Slip Clutch Design
The motorcycle uses a mechanically actuated 10-plate wet Assist and Slip clutch. This clutch design manages power transfer while supporting controlled engagement and disengagement during operation. The multi-plate arrangement provides a large friction surface area within a compact assembly. Mechanical actuation maintains direct rider input through the clutch controls. Integration with the transmission system contributes to predictable shifting characteristics throughout the operating range.
Six-Speed Cruise Drive® Transmission
The 2026 Harley-Davidson® Road Glide® Limited utilizes a 6-Speed Cruise Drive® transmission. Overall gear ratios are 9.593 in first gear, 6.65 in second gear, 4.938 in third gear, 4.0 in fourth gear, 3.407 in fifth gear, and 2.875 in sixth gear. This progression provides a structured spread of ratios across the transmission range. The six-speed configuration supports both acceleration and sustained highway operation. Combined with the engine's torque output, the transmission contributes to the motorcycle's touring-oriented performance characteristics.
Chassis and Structural Engineering
The chassis of the 2026 Harley-Davidson® Road Glide® Limited uses a mild-steel tubular frame engineered to support the motorcycle's touring mission. The frame incorporates a two-piece stamped and welded backbone along with cast and forged junctions. Twin down-tubes contribute to structural integrity, while a bolt-on rear frame section incorporates forged fender supports. The overall assembly is MIG-welded as part of its manufacturing process. These construction methods create a durable platform capable of supporting rider, passenger, luggage, and touring equipment loads.
Swingarm Construction
The swingarm is manufactured from mild steel and utilizes a two-piece drawn and welded section. Forged junctions are incorporated into the design to strengthen critical connection points. Like the frame, the swingarm uses MIG-welded construction techniques. This design supports the rear suspension system while maintaining structural rigidity during operation.
Dimensions and Geometry
The 2026 Harley-Davidson® Road Glide® Limited measures 103.1 inches in overall length, 40.7 inches in overall width, and 57 inches in overall height. The wheelbase measures 64 inches, contributing to the motorcycle's overall footprint and stability characteristics. Steering geometry includes a 26-degree rake and a 29.25-degree fork angle. The trail measures 6.8 inches, further defining the motorcycle's steering characteristics. Static ground clearance is listed at 5.1 inches, while lean angle capability reaches 31 degrees on both the left and right sides.
Suspension, Wheels, and Tires
The suspension system of the 2026 Harley-Davidson® Road Glide® Limited is configured to support touring comfort while maintaining chassis control. Front suspension uses a 49 mm Dual Bending Valve fork. Rear suspension consists of dual adjustable emulsion shocks designed to accommodate varying loads and rider preferences. Together, these components provide controlled wheel movement and support during operation. The suspension package works with the motorcycle's frame and wheel assembly to create a balanced riding platform.
Front and Rear Suspension Components
The front fork provides 4.6 inches of suspension travel. Rear suspension travel measures 3 inches through dual adjustable emulsion shocks. The left rear shock incorporates remote preload adjustment, while the right shock uses threaded preload adjustment. These adjustment provisions allow the suspension to be configured according to load requirements and riding conditions. The design reflects the motorcycle's focus on touring versatility and rider comfort.
Wheel and Tire Specifications
Cast aluminum wheels are fitted at both ends of the motorcycle. The front wheel measures 19 inches in diameter and 3.5 inches in width, while the rear wheel measures 18 inches in diameter and 5 inches in width. Tire specifications include a Dunlop® Harley-Davidson® Series D408F front tire in size 130/60B19 M/C 61H and a D407T rear tire in size 180/55B18 M/C 80H. These components form the motorcycle's contact points with the road surface. Their dimensions and construction are matched to the chassis and suspension configuration.
Braking Systems and Rider Safety Technology
The braking system of the 2026 Harley-Davidson® Road Glide® Limited combines conventional hardware with a broad suite of electronic rider assistance technologies. Front braking duties are handled by dual floating rotors measuring 12.6 inches in diameter and 0.18 inches in thickness. The rear brake utilizes a fixed rotor measuring 11.8 inches in diameter and 0.28 inches in thickness. Braking force is applied through four-piston fixed dual axially mounted front calipers and a single axially mounted rear caliper. This hardware provides the foundation for the motorcycle's braking performance.
Standard Rider Safety Enhancements
The motorcycle includes Anti-lock Brake System (ABS), Electronic Linked Braking (ELB), Traction Control System (TCS), Drag-torque Slip Control System (DSCS), Vehicle Hold Control (VHC), and Tire Pressure Monitoring System (TPMS). These systems operate together to support braking performance, traction management, vehicle stability, and rider awareness. Vehicle Hold Control assists in maintaining position during stops on grades. The Tire Pressure Monitoring System provides information regarding tire inflation status.
Cornering Rider Safety Enhancements
The 2026 Harley-Davidson® Road Glide® Limited also includes Cornering Rider Safety Enhancements. These systems consist of Cornering Enhanced Anti-lock Brake System (C-ABS), Cornering Enhanced Electronic Linked Braking (C-ELB), Cornering Enhanced Traction Control System (C-TCS), and Cornering Drag-Torque Slip Control System (C-DSCS). These technologies expand the functionality of the standard rider assistance package by incorporating lean-angle-sensitive operation. Their integration supports motorcycle control during cornering situations while maintaining the platform's touring focus. Together, these systems represent a significant component of the motorcycle's electronic safety architecture.
Electrical System and Lighting
The electrical system is designed to support starting, charging, lighting, navigation, infotainment, and accessory functions. Power is supplied by a sealed, maintenance-free 12-volt battery rated at 28 amp-hours and 405 cold cranking amps. Charging is provided through a three-phase 58-amp system capable of producing up to 754 watts at 13 volts. The engine starting uses a 1.6 kW electric starter with solenoid shift starter motor engagement. These components form the foundation of the motorcycle's electrical infrastructure.
LED Lighting Equipment
The 2026 Harley-Davidson® Road Glide® Limited utilizes LED lighting throughout its primary lighting systems. The headlamp uses LED technology, as do the tail and stop lamps. Front signal lamps and rear turn signals also employ LED lighting. Additional visibility support is provided by LED fog lamps integrated into the lower fairings. This comprehensive LED configuration supports illumination and visibility functions across multiple riding conditions.
Navigation and Power Access
An embedded navigation system is included as part of the motorcycle's equipment package. The navigation system supports traffic and weather information through a Wi-Fi hotspot connection, where applicable. Electrical accessory support includes a 15-watt USB-C power port located within the media storage box. An additional electric power accessory outlet is integrated into the Tour-Pak®. These features support device charging and connectivity during travel.
Infotainment and Connectivity Features
The 2026 Harley-Davidson® Road Glide® Limited incorporates a modern infotainment system designed to centralize vehicle information, audio functions, communication, and navigation. The system operates through Skyline™ OS and uses a 12.3-inch full-color TFT display. Digital gauges are integrated within the display, consolidating operational information into a single interface. Vehicle information functions include displays for air temperature, oil pressure, and EITMS information. The integrated approach simplifies access to riding and vehicle data.
Audio System and Media Functions
The audio system delivers 50 watts per channel and uses four speakers. Two 6.5-inch speakers are mounted within the fairing, while two additional 6.5-inch speakers are located in the Tour-Pak®. AM and FM radio functionality are included as standard equipment. Media playback through USB supports SD cards, flash drives, and MP3 files. These capabilities provide multiple entertainment options during extended rides.
Smartphone Integration and Communication
Bluetooth® connectivity supports phone, media player, and headset functions. Hands-free mobile phone capability is included as standard equipment. Apple CarPlay® compatibility is available through both wired and wireless connections. USB-C and MTP smartphone compatibility allows device integration through the connection located within the inner fairing storage compartment. Rider and passenger intercom capability is available through compatible headsets, with VOX functionality supported for Harley-Davidson® headsets.
Comfort, Capacity, and Touring Equipment
The 2026 Harley-Davidson® Road Glide® Limited incorporates dimensions and carrying capacity intended to support long-distance touring use. Laden seat height measures 27.5 inches, while unladen seat height measures 29 inches. The motorcycle has a running-order weight of 919 pounds and an as-shipped weight of 883 pounds. Gross Vehicle Weight Rating is 1,360 pounds, with front and rear axle ratings of 500 pounds and 927 pounds, respectively. These figures define the motorcycle's load-carrying parameters and operating capacities.
Storage and Carrying Capacity
Luggage volume measures 5.05 cubic feet, providing dedicated storage capacity for touring applications. This storage capability complements the motorcycle's touring-focused configuration and supports extended travel requirements. The available capacity allows riders to transport personal gear and travel essentials within the integrated luggage system.
