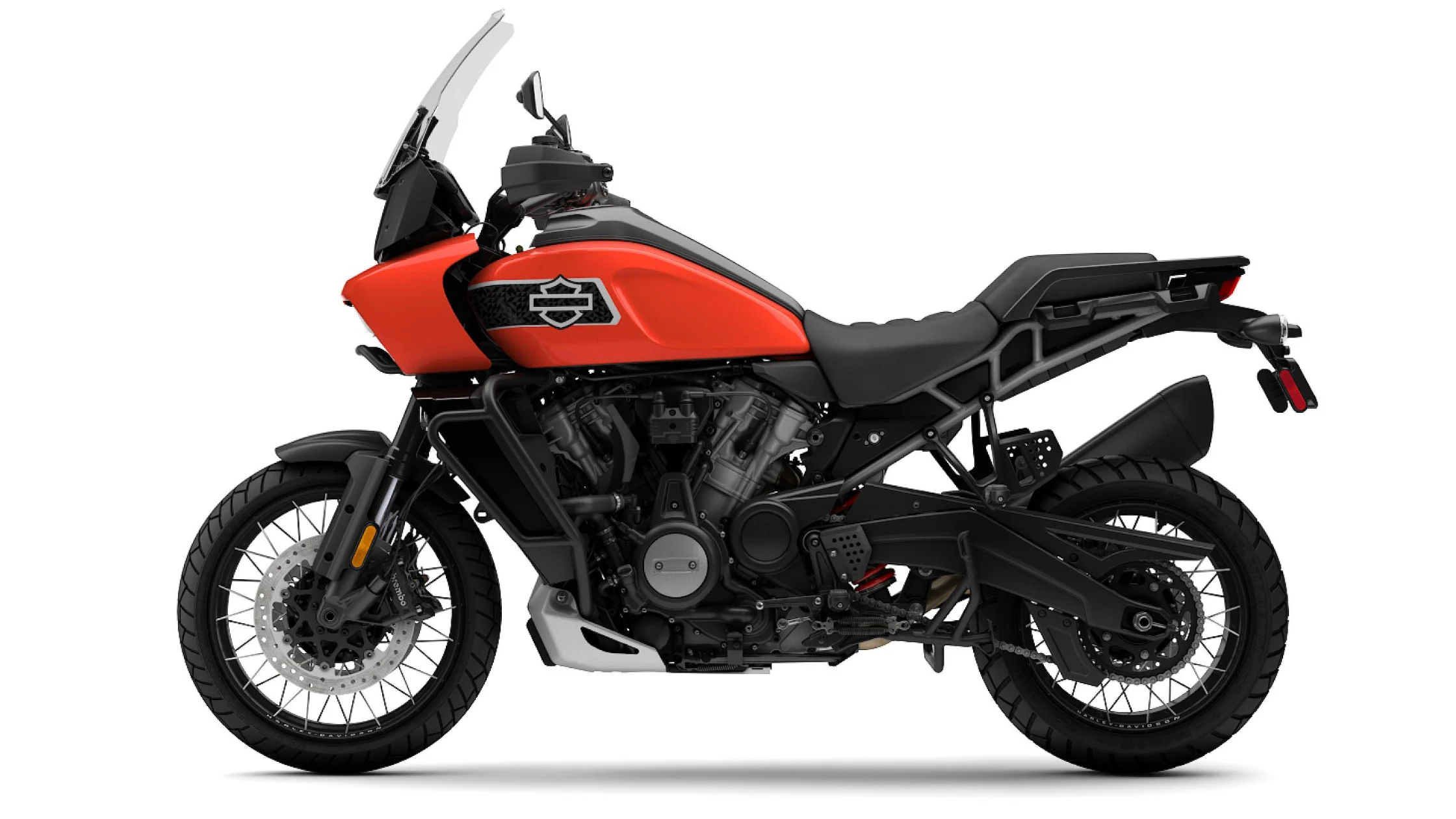

The 2026 Harley-Davidson® Pan America® 1250 Special is engineered as a high-performance adventure-touring motorcycle that integrates a liquid-cooled engine platform, electronically controlled suspension, and a comprehensive rider-assistance system. Its design focuses on measurable outputs such as horsepower, torque delivery, suspension travel, braking capability, and electronic control systems. The model combines a 1,252 cc engine, a semi-active suspension system, and a full-color TFT interface to deliver consistent mechanical performance and rider input management across varied riding conditions.
Engine Configuration and Output Specifications
The 2026 Harley-Davidson® Pan America® 1250 Special uses the Revolution® Max 1250 engine, a liquid-cooled V-twin configuration with a displacement of 1,252 cubic centimeters. The engine features chain-driven dual overhead camshafts, hydraulic self-adjusting lifters, and variable valve timing applied to both intake and exhaust valves. Each cylinder contains four valves, allowing for improved airflow management and combustion efficiency.
The engine produces 150 horsepower at 8,750 rpm and 94 ft-lb of torque at 6,750 rpm. The compression ratio is set at 13.0:1, supporting high-efficiency combustion and performance output. Bore and stroke measurements are 4.134 inches and 2.846 inches, respectively, which contribute to a balance between high-revving capability and torque generation.
Fuel delivery is managed through Electronic Sequential Port Fuel Injection. The intake system uses a downdraft configuration with tuned velocity stacks and a washable filter element to maintain airflow consistency. The exhaust system uses a 2-into-1-into-1 layout with a catalyst integrated into the header, optimizing emissions control and exhaust flow routing. The lubrication system is a semi-dry sump design, which supports engine cooling and oil distribution during varied riding angles and operating conditions.
Transmission and Drivetrain Mechanics
The motorcycle is equipped with a 6-speed transmission designed to manage both low-speed maneuverability and sustained highway operation. The gear ratios are calibrated for progressive acceleration and consistent torque transfer. The overall gear ratios are 13.11 in first gear, 9.687 in second gear, 7.509 in third gear, 6.057 in fourth gear, 5.08 in fifth gear, and 4.436 in sixth gear.
The primary drive uses a gear ratio of 49/89, while the final drive is a chain system with a 19/48 ratio. The clutch is a mechanical, 8-plate wet design with assist and slip functionality. This configuration reduces lever effort and controls rear wheel behavior during downshifts by limiting excessive engine braking force.
Structural Design and Chassis Composition
The frame uses a stressed-member architecture constructed from high-strength low-alloy steel. The trellis structure incorporates stamped, cast, and forged sections joined through MIG welding, along with an aluminum forged mid-structure. This configuration supports rigidity and weight distribution while allowing the engine to function as a structural component.
The swingarm is a one-piece cast aluminum unit designed to maintain stability under load and during suspension travel. The overall wheelbase measures 62.4 inches, contributing to balanced handling characteristics. The rake angle is 25 degrees, with a trail measurement of 4.3 inches, which supports directional stability and steering response.
The motorcycle measures 89.4 inches in length, 38.4 inches in width, and 59.4 inches in height. Static ground clearance is 6.9 inches in standard configuration and increases to 8.1 inches when equipped with the optional Adaptive Ride Height system. These measurements define the motorcycle’s clearance capabilities and handling geometry.
Suspension System and Ride Height Adjustment
The front suspension consists of a 47 mm inverted fork with electronically adjustable semi-active damping control. The system continuously adjusts compression and rebound damping based on riding inputs and road conditions. The rear suspension uses a linkage-mounted monoshock with automatic electronic preload control and semi-active damping adjustment.
Suspension travel is 7.5 inches at both the front and rear. This range allows the motorcycle to absorb irregular surfaces while maintaining tire contact and chassis stability. The optional Adaptive Ride Height system modifies seat height dynamically, improving accessibility during stops without affecting suspension performance during motion.
Seat height varies based on configuration. In the standard setup, the laden seat height ranges from 31.1 inches in the low position to 32 inches in the high position. With Adaptive Ride Height, the laden seat height can be reduced to 30.4 inches in the low setting. Unladen seat height ranges from 33.4 to 34.4 inches, with reduced measurements when the optional system is installed. These variations provide flexibility in rider positioning and ground reach.
Wheels, Tires, and Braking Components
The 2026 Harley-Davidson® Pan America® 1250 Special uses Michelin® Scorcher Adventure radial tires. The front tire is sized at 120/70R19 60V, while the rear tire is 170/60R17 72V. The wheel configuration includes a 19-inch front wheel and a 17-inch rear wheel, supporting stability and traction across different surfaces.
The braking system includes dual front rotors with a diameter of 12.6 inches and a thickness of 0.17 inches. These rotors are paired with radially mounted monoblock 4-piston calipers. The rear braking system uses a single rotor with an 11-inch diameter and a thickness of 0.2 inches, combined with a floating single-piston caliper.
Anti-lock Braking System is standard, providing controlled braking performance under varying traction conditions. The braking configuration supports consistent deceleration and rider input modulation.
Performance Metrics and Operational Capacity
The engine torque is rated at 94 ft-lb, measured according to J1349 standards. Power output is 150 horsepower, which supports high-speed operation and sustained acceleration. The motorcycle has a lean angle of 42 degrees on both the left and right sides, allowing for controlled cornering clearance.
Fuel capacity is 5.6 gallons, with a reserve capacity of 1 gallon indicated by a warning system. Estimated fuel economy is 46 miles per gallon under combined city and highway conditions. Oil capacity is 4.75 quarts with a filter, and coolant capacity is 2.32 quarts.
The motorcycle has an as-shipped weight of 542 pounds and a running order weight of 578 pounds. The gross vehicle weight rating is 1,003 pounds, with a front axle rating of 399 pounds and a rear axle rating of 665 pounds. These figures define load capacity and operational limits.
Electrical System and Lighting Configuration
The electrical system includes a sealed, maintenance-free absorbed glass mat battery rated at 12 volts, 17.5 amp-hours, and 310 cold cranking amps. Charging is managed through a three-phase 45-amp system, producing 390 watts at 1,300 rpm and a maximum output of 585 watts at 2,500 rpm.
The starting system uses a 0.9 kW electric starter with direct drive engagement. Lighting components include a Daymaker® Adaptive LED headlamp with a 6-segment LED banking system, an all-LED tail and stop lamp, and LED turn signals at both the front and rear. These components improve visibility and illumination consistency.
Instrumentation and Connectivity Systems
The motorcycle is equipped with a 6.8-inch TFT display that provides a wide range of operational data. The display includes a speedometer, a gear position indicator, an odometer, a fuel level, a clock, trip information, ambient temperature, and alerts such as low temperature, side stand position, and tip-over detection. It also includes cruise control indicators, range estimation, and tachometer readings.
Bluetooth® connectivity supports phone pairing for calls, media playback, and navigation through the Harley-Davidson® mobile application. The system also supports headset-based intercom functionality. A USB-C port provides charging and system update capability, with outputs rated at 5 volts and up to 3 amps.
Vehicle information systems include tire pressure monitoring, engine temperature tracking, battery voltage monitoring, and ambient air temperature display. These systems provide continuous operational data to the rider.
Rider Assistance and Safety Technologies
The 2026 Harley-Davidson® Pan America® 1250 Special includes a comprehensive set of rider-assistance systems. These include Anti-lock Braking System, Electronic Linked Braking, Traction Control System, Drag-torque Slip Control System, Vehicle Hold Control, Tire Pressure Monitoring System, and Wheel Lift Mitigation.
Cornering-enhanced systems expand these features by adjusting performance based on lean angle. These include Cornering Enhanced Anti-lock Braking System, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control System, and Cornering Drag-Torque Slip Control System. Enhanced Lift Mitigation is also included in this category.
Vehicle Hold Control assists with maintaining position during incline starts by holding brake pressure temporarily. Traction control and slip control systems regulate rear wheel behavior during acceleration and deceleration. These systems operate continuously to support stability and rider input management.
