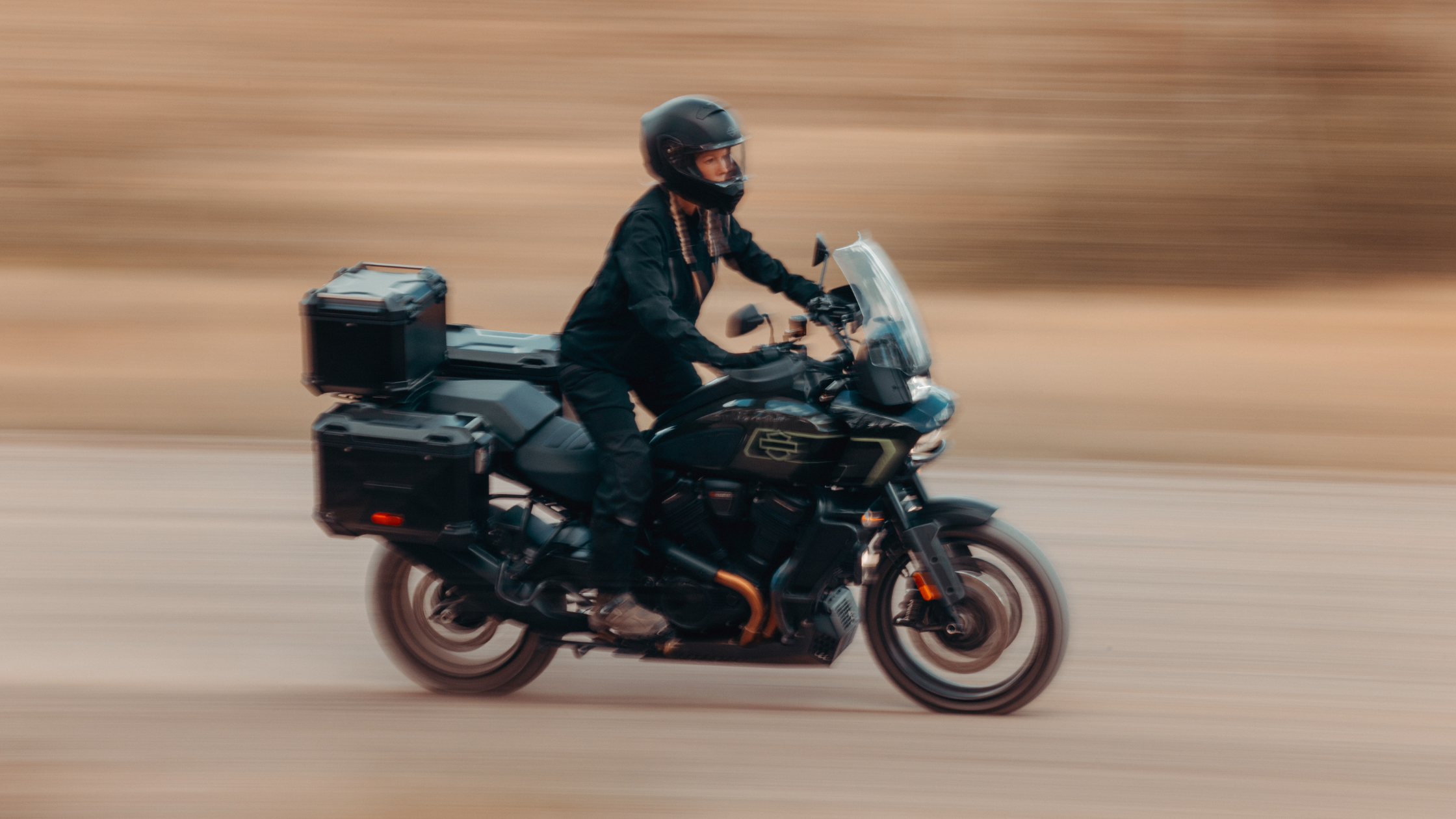

The 2026 Harley-Davidson® Pan America® 1250 Limited uses the Revolution® Max 1250 engine, a liquid-cooled V-Twin powertrain designed for adventure touring and extended highway operation. The engine has a displacement of 76.4 cubic inches, or 1,252 cc, with a bore measuring 4.134 inches and a stroke of 2.846 inches. The compression ratio is rated at 13.0:1. The engine configuration includes chain-driven dual overhead camshafts, hydraulic self-adjusting lifters, and variable valve timing on both the intake and exhaust sides. Each cylinder uses four valves to improve airflow efficiency and combustion control across different RPM ranges.
The fuel delivery system uses Electronic Sequential Port Fuel Injection. Harley-Davidson® also equips the motorcycle with a downdraft intake system that includes tuned velocity stacks and washable filter media. The exhaust system follows a 2-into-1-into-1 configuration with the catalyst integrated into the header section. Lubrication uses a semi-dry sump system to maintain oil management efficiency during aggressive cornering, braking, and acceleration.
The engine produces 150 horsepower at 8,750 rpm and 94 ft-lb of torque at 6,750 rpm. Those figures provide strong acceleration capability for highway merging, passing, and loaded touring operations. The torque curve supports low and mid-range responsiveness, while the higher horsepower rating supports sustained high-speed performance during long-distance travel.
Transmission and Drivetrain Engineering
The 2026 Harley-Davidson® Pan America® 1250 Limited uses a 6-speed transmission paired with a mechanical assist-and-slip clutch. The clutch system uses a mechanical, 8-plate wet, assist and slip clutch and is rated at 1090N. The assist function reduces clutch lever effort during operation, while the slip function helps maintain rear wheel stability during aggressive downshifting.
The primary drive uses a gear-driven setup with a 49/89 ratio. Final drive operation uses a chain system with a 19/48 ratio. Gear ratios are configured to support both lower-speed maneuverability and highway cruising efficiency. The overall first gear ratio is 13.11, while sixth gear uses a 4.436 ratio. Intermediate ratios include 9.687 in second gear, 7.509 in third gear, 6.057 in fourth gear, and 5.08 in fifth gear.
The drivetrain configuration supports a broad operating range suitable for touring, commuting, and varied terrain conditions. Chain final drive operation also provides direct power transfer and allows easier gearing modifications for riders seeking alternative riding characteristics.
Frame Construction and Structural Design
The frame structure uses a stressed-member high-strength low-alloy steel trellis frame with stamped, cast, and forged junctions. The frame assembly uses MIG welding and integrates an aluminum forged mid-structure section. This design reduces unnecessary chassis weight while maintaining structural rigidity during cornering and uneven surface operation.
The swingarm uses a one-piece cast aluminum construction. This setup contributes to reduced unsprung weight and improved rear suspension response. The overall chassis geometry includes a rake angle of 25 degrees and a trail measuring 4.3 inches. The wheelbase measures 62.2 inches, creating a stable platform during highway travel and directional transitions.
The motorcycle measures 92.3 inches in total length, 43.1 inches in overall width, and 59.4 inches in overall height. Static ground clearance is rated at 7.1 inches. Models equipped with Adaptive Ride Height use a reduced static ground clearance measurement of 6.1 inches. Dynamic ground clearance with optional suspension measures 6.9 inches.
Semi-Active Suspension and Adaptive Ride Height
The front suspension uses a 47 mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps provide additional rigidity and reduced weight. Optional configurations include Adaptive Ride Height integration with the electronically adjustable semi-active damping system.
Rear suspension operation uses a linkage-mounted monoshock with automatic electronic preload control and semi-active compression and rebound damping. Optional versions also include Adaptive Ride Height functionality. Suspension travel measures 7.5 inches at both the front and rear.
Adaptive Ride Height changes the motorcycle’s ride height automatically during operation. Laden seat height with optional ARH suspension measures 30.4 inches in the low position and 31.4 inches in the high position. Unladen seat height with optional ARH suspension measures 32.1 inches in the low position and 33.1 inches in the high position.
The electronically controlled suspension system adjusts damping characteristics based on riding conditions and load changes. This setup improves stability during acceleration, braking, and cornering while maintaining comfort during extended travel.
Wheel and Tire Configuration
The 2026 Harley-Davidson® Pan America® 1250 Limited uses a 19-inch front wheel and a 17-inch rear wheel. Standard wheel construction uses satin black aluminum cast components. Optional wheel configurations include anodized aluminum tubeless laced wheels.
The front wheel measures 3 inches wide, while the rear wheel measures 4.5 inches wide. Tire specifications include a Michelin® Scorcher “Adventure” radial front tire sized at 120/70R19 60V and a rear tire sized at 170/60R17 72V.
The larger front wheel contributes to improved stability and obstacle management during uneven terrain operation. Tire construction supports both touring mileage and cornering performance.
Brake Components and Cornering Control Systems
The front braking system uses dual floating tower-mounted rotors with a diameter of 12.6 inches and a thickness of 0.17 inches. Front calipers use radially mounted monoblock four-piston construction. Rear braking uses a single floating piston caliper paired with an 11-inch solid uniform expansion rotor measuring 0.2 inches thick.
Anti-lock Braking System functionality comes standard. The motorcycle also includes Electronic Linked Braking to coordinate front and rear brake force distribution during braking operation. These systems improve braking consistency during varied road conditions and sudden deceleration events.
The motorcycle includes multiple electronically managed rider safety systems. Standard systems include the Traction Control System, the Drag-torque Slip Control System, the Vehicle Hold Control, the Tire Pressure Monitoring System, and the Wheel Lift Mitigation.
Cornering Rider Safety Enhancements include Cornering Enhanced Anti-lock Braking System, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control System, Cornering Drag-Torque Slip Control System, and Enhanced Lift Mitigation. These systems use motorcycle lean angle data and other sensor inputs to modify intervention levels during cornering operations.
Lean angle capability measures 42 degrees on both the left and right sides. This specification supports controlled cornering performance during aggressive road riding conditions.
Electrical System and Lighting Equipment
The electrical system uses a sealed maintenance-free absorbed glass mat battery rated at 12 volts and 17.5Ah with 310 cold cranking amps at 0°F. Charging operation uses a three-phase 45-amp system producing 390 watts at 13 volts and 1300 rpm, with maximum output reaching 585 watts at 13 volts and 2500 rpm.
Starting operation uses a 0.9 kW electric starter system with direct-drive starter motor engagement. This configuration supports dependable startup performance during cold-weather operation and repeated engine cycling.
Lighting equipment includes a Daymaker® Adaptive LED headlamp with a six-segment LED banking lamp. The adaptive function adjusts the lighting projection during the cornering operation to improve forward visibility. Rear lighting uses an all-LED tail and stop lamp system with signature tail lighting. Front and rear turn signals use LED Bullet signal assemblies.
Auxiliary fog lamps and driving beams are also included. Additional electrical functionality includes a USB-C power outlet with 5V output at 2.4 amps for charging portable electronic devices.
Instrumentation and Connectivity Features
Instrumentation uses a 6.8-inch TFT touchscreen display with a color interface. The display provides information including speedometer data, gear position, odometer readings, fuel level, trip information, ambient temperature, tachometer indication, cruise information, and range estimates.
Additional alerts include low-temperature warning notifications, side-stand-down alerts, and tip-over alerts. Bluetooth® connectivity supports phone pairing functionality for calls, music access, and navigation support through the Harley-Davidson® mobile application.
The infotainment system supports hands-free mobile phone connectivity through Bluetooth® integration. Rider and passenger intercom functionality supports headset operation. Vehicle information screens display Tire Pressure Monitoring System data, engine temperature, battery voltage, and ambient air temperature information.
USB-C connectivity also supports instrument software updates in addition to charging functionality. Navigation support operates through the H-D Mobile App connected through Bluetooth® communication.
Fuel Capacity, Weight, and Touring Specifications
Fuel capacity measures 5.6 gallons, with a reserve warning light capacity of 1 gallon. Estimated fuel economy is rated at 46 mpg. Oil capacity with filter replacement measures 4.75 quarts, while coolant capacity measures 2.32 quarts.
The motorcycle weighs 626 pounds in shipped configuration and 661 pounds in running order. Gross Vehicle Weight Rating measures 1,034 pounds. The Front Gross Axle Weight Rating measures 399 pounds, while the rear rating measures 665 pounds.
Luggage volume capacity measures 4.24 cubic feet. The dimensions and carrying specifications support extended touring operation with passenger and cargo loads. Suspension preload adjustment and electronic damping management also assist load compensation during travel.
