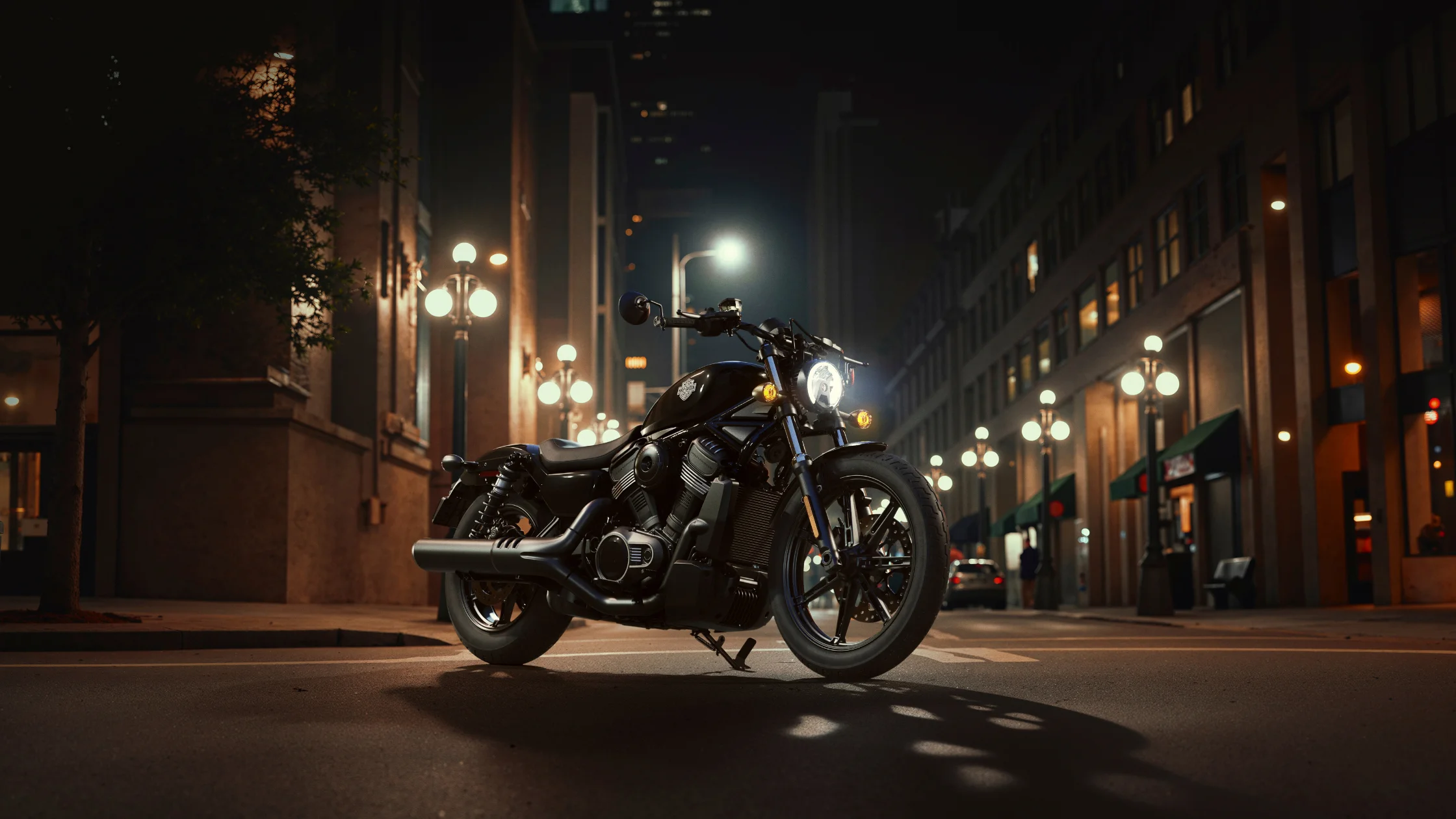

The 2026 Harley-Davidson® Nightster® uses the Revolution® Max 975T engine, a liquid-cooled V-twin designed with a chain-driven double overhead camshaft configuration. The valvetrain includes hydraulic self-adjusting lifters, intake variable valve timing, and four valves per cylinder. This arrangement supports consistent valve operation and controlled airflow across the rev range. The engine has a bore of 3.82 inches and a stroke of 2.6 inches, resulting in a total displacement of 975 cc. A compression ratio of 12.0:1 reflects a performance-oriented configuration that requires premium fuel for proper operation.
Fuel delivery is managed through Electronic Sequential Port Fuel Injection. The intake system uses a downdraft configuration with tuned velocity stacks and washable filter media. This design improves airflow efficiency and supports combustion consistency. Exhaust gases exit through a 2-into-1 system that integrates a catalyst in the header. The lubrication system follows a semi-dry sump layout, which contributes to efficient oil circulation and engine packaging.
The engine produces 91 horsepower at 7,500 rpm and 72 ft-lb of torque at 5,750 rpm. These figures indicate a balance between high-rpm output and midrange torque delivery. The torque peak at a moderate engine speed supports controlled acceleration and steady throttle response across varying riding conditions.
Transmission and Drivetrain Configuration
The 2026 Harley-Davidson® Nightster® uses a six-speed transmission paired with a gear-driven primary drive and a belt final drive. The primary drive ratio is 49/89, while the final drive ratio is 34/80. This configuration provides a consistent transfer of power from the engine to the rear wheel with reduced maintenance requirements compared to chain-driven systems.
The clutch is an 8-plate wet design with assist and slip functionality. Assist operation reduces lever effort during clutch engagement, while the slip mechanism helps manage rear-wheel stability during aggressive downshifting. This combination improves control during deceleration and gear transitions.
The overall gear ratios are structured to maintain a steady progression across all six gears. First gear is 12.21, followed by 9.022 in second, 6.994 in third, 5.641 in fourth, 4.731 in fifth, and 4.131 in sixth. This spread supports smooth acceleration from a stop while maintaining manageable engine speed during cruising. The ratio spacing ensures that engine output remains usable across different speeds without excessive gaps between gears.
Structural Frame and Chassis Composition
The chassis uses a stressed-member configuration built from high-strength low-alloy steel in a trellis design. The frame incorporates stamped, cast, and forged junctions with MIG-welded construction and an aluminum forged mid-structure. This layout improves rigidity while maintaining a manageable overall weight. The engine functions as a structural element, which reduces the need for additional frame mass and contributes to overall compactness.
The swingarm is constructed from mild steel with a rectangular tube section and a stamped cross-member. This design supports rear-wheel stability and consistent tracking under load. The structural approach prioritizes predictable handling and durability under typical road use.
Suspension Geometry and Travel
Front suspension consists of 41 mm SHOWA® Dual Bending Valve conventional forks. These forks are supported by aluminum triple clamps, which help maintain front-end stability. The rear suspension uses dual outboard direct-acting emulsion shock absorbers with coil springs and a threaded collar for preload adjustment. This setup allows for limited tuning based on rider weight and load distribution.
Suspension travel measures 4.5 inches at the front and 3 inches at the rear. This range provides controlled damping without excessive movement. The geometry includes a rake angle of 30 degrees, a fork angle of 28 degrees, and 5.4 inches of trail. The wheelbase is 60.8 inches. These measurements contribute to stable straight-line performance and controlled cornering behavior. Lean angle is rated at 32 degrees on both sides, indicating sufficient clearance for moderate cornering angles.
Dimensions, Weight, and Rider Positioning
The overall length of the 2026 Harley-Davidson® Nightster® is 88.6 inches, with a width of 33 inches and a height of 43.5 inches. The laden seat height is 27.1 inches, while the unladen seat height is 27.8 inches. These measurements place the rider in a low seating position, which improves reach to the ground during stops.
Static ground clearance is 4.3 inches. This dimension limits underbody contact during typical riding conditions while maintaining a low center of gravity. The motorcycle has a running order weight of 481 pounds and an as-shipped weight of 462 pounds. These values contribute to manageable handling during low-speed maneuvers and controlled movement during parking.
Fuel capacity is 3.1 gallons, with a reserve capacity of 0.8 gallons indicated by a warning light. Oil capacity with filter is 4.75 quarts, and coolant capacity is 2.22 quarts. The gross vehicle weight rating is 922 pounds, with front and rear axle ratings of 353 pounds and 595 pounds, respectively. These figures define the operational limits for load distribution and overall vehicle capacity.
Wheels, Tires, and Braking System
The 2026 Harley-Davidson® Nightster® uses aluminum cast wheels finished in satin black. The front wheel measures 19 inches in diameter and 2.5 inches in width, while the rear wheel measures 16 inches in diameter and 4.25 inches in width. The tire configuration includes a 100/90-19 57H front tire and a 150/80B16 77H rear tire, both from the Dunlop® Harley-Davidson® Series.
The braking system includes a front axially mounted four-piston caliper and a rear floating single-piston caliper. The front brake uses a single floating rotor with a diameter of 12.6 inches and a thickness of 0.23 inches. The rear brake uses a solid rotor with a diameter of 10.2 inches and a thickness of 0.2 inches. Anti-lock Braking System is standard. This system prevents wheel lock during braking and supports controlled deceleration on varying road surfaces.
Electrical System and Lighting Components
The electrical system uses a sealed absorbed glass mat battery rated at 12 volts and 12 amp-hours, with 225 cold cranking amps at 0 degrees Fahrenheit. Charging is handled by a three-phase 45-amp system capable of producing 300 watts at 1,200 rpm and up to 585 watts at higher engine speeds. Starting is managed by a 0.9 kW electric starter motor with direct drive engagement.
Lighting components include an all-LED headlamp with both low and high beam functions and integrated signature lighting. The rear lighting system is also LED, including tail and stop lights. Front and rear turn signals use LED bullet-style indicators. These components provide consistent illumination and reduced power consumption.
Instrumentation and Rider Information Display
The 2026 Harley-Davidson® Nightster® features a 4-inch round gauge with an analog display and segmented LCD functionality. The display provides a speedometer and multiple indicator lights. These include turn signal indicators, traction control status, coolant temperature alerts, ABS alerts, battery voltage warnings, high beam indication, low fuel indication, and oil pressure alerts.
Additional display functions include total odometer, trip meters, gear position indication, fuel range, digital tachometer, segmented fuel level, and ride mode indication. The system also includes alerts for service intervals and engine diagnostics. This instrumentation setup focuses on delivering essential riding data without integrating additional infotainment features.
Rider Assistance and Control Systems
The 2026 Harley-Davidson® Nightster® includes several standard rider assistance systems designed to support stability and control. The Anti-lock Braking System prevents wheel lock during braking. The Traction Control System monitors rear-wheel traction and adjusts output when slip is detected. Drag-torque Slip Control System reduces rear-wheel instability during deceleration and downshifting by managing engine braking forces.
Electronic linked braking, vehicle hold control, tire pressure monitoring, and wheel lift mitigation are not included. Cornering-enhanced systems, such as cornering ABS and cornering traction control, are also not part of this configuration. The included systems focus on basic stability functions without adding advanced cornering-based electronic intervention.
Fuel Efficiency and Operating Range
Fuel economy is estimated at 52 miles per gallon under combined city and highway conditions. With a fuel capacity of 3.1 gallons, this efficiency supports a moderate riding range between refueling intervals. The reserve fuel indicator activates when approximately 0.8 gallons remain, allowing the rider to monitor fuel usage and plan refueling stops accordingly.
