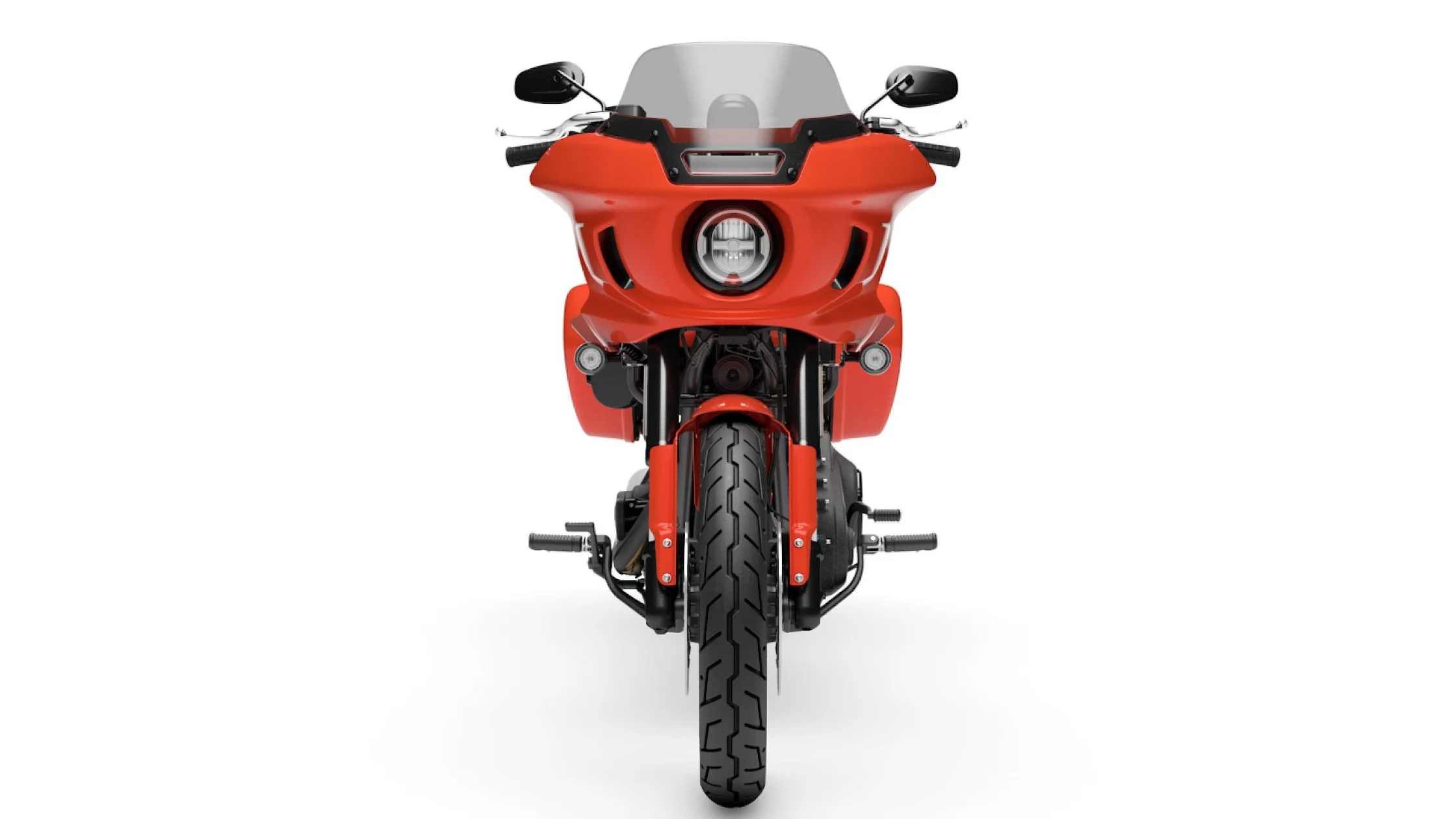

The 2026 Harley-Davidson® Low Rider® ST is a performance-focused cruiser that combines a high-output V-twin engine, a purpose-built chassis, integrated rider-assistance technologies, and practical touring-oriented utility. Built on the FXLRST platform, this model incorporates a Milwaukee-Eight® 117 High Output engine, a six-speed transmission, advanced braking systems, and suspension components designed to support both power delivery and rider control. The motorcycle also integrates modern instrumentation, LED lighting, electronic rider aids, and luggage capacity that enhance everyday functionality.
Engine Performance and Powertrain
The 2026 Harley-Davidson® Low Rider® ST is powered by the Milwaukee-Eight® 117 High Output engine, a large-displacement V-twin with a certified displacement of 117 cubic inches, or 1,923 cubic centimeters. The engine features a bore of 4.075 inches and a stroke of 4.5 inches, producing a substantial displacement that supports strong output characteristics throughout the operating range. A compression ratio of 10.3:1 contributes to the engine's performance profile while working in conjunction with the electronic fuel injection system. Harley-Davidson® rates the engine at 128 ft-lb of torque at 4,000 rpm and 114 horsepower, or 85 kW, at 5,000 rpm.
Engine Architecture and Induction System
The Milwaukee-Eight® 117 High Output engine utilizes pushrod-operated overhead valves with hydraulic self-adjusting lifters and four valves per cylinder. This design minimizes routine valve adjustment requirements while supporting efficient airflow through the combustion chambers. Fuel delivery is managed by Electronic Sequential Port Fuel Injection, which provides precise fuel metering across operating conditions. Air enters the engine through a Heavy Breather intake that incorporates synthetic filter media and a washable exposed element. This intake arrangement forms an important component of the engine's airflow system and complements the overall powertrain design.
Exhaust and Lubrication Systems
Exhaust gases are routed through a 2-into-1 exhaust system that incorporates a catalyst within the header assembly. The compact design supports the engine package while maintaining the specified exhaust configuration for the model. Engine lubrication is handled by a pressurized dry-sump system equipped with an oil cooler. This arrangement stores and circulates oil separately from the crankcase while helping maintain lubrication consistency during operation. Together, the lubrication and exhaust systems contribute to the motorcycle's overall mechanical package and support sustained engine performance.
Transmission and Drivetrain
The drivetrain of the 2026 Harley-Davidson® Low Rider® ST is engineered to transfer the output of the Milwaukee-Eight® 117 High Output engine through a combination of chain and belt drive components. Primary drive duties are handled by a chain system with a 34/46 ratio, while the final drive utilizes a belt with a 32/66 ratio. This drivetrain arrangement works in conjunction with a mechanical 10-plate wet clutch featuring assist and conventional operation. The design provides a direct connection between engine output and rear-wheel power delivery while maintaining the specified drivetrain configuration for the model.
Six-Speed Cruise Drive® Transmission
Power is managed through a 6-Speed Cruise Drive® transmission that offers six forward gear ratios. The overall first-gear ratio is 9.311, followed by ratios of 6.454 in second gear, 4.793 in third gear, 3.882 in fourth gear, 3.307 in fifth gear, and 2.79 in sixth gear. This progression provides a structured range of gearing that supports acceleration and cruising operation. The transmission functions as a key component of the motorcycle's performance package by translating engine output into usable road speed. Its integration with the clutch and final drive system creates a complete drivetrain package designed around the capabilities of the Milwaukee-Eight® 117 High Output engine.
Chassis Design and Structural Engineering
The chassis of the 2026 Harley-Davidson® Low Rider® ST uses a mild steel tubular frame featuring a rectangular-section backbone. The frame incorporates stamped, cast, and forged junctions that are assembled using MIG welding techniques. Aluminum forged fender supports further contribute to the structure while reducing the complexity of supporting components.
Swingarm Construction and Geometry
The motorcycle utilizes a mild steel swingarm constructed from tubular sections and a stamped cross-member. Forged axle junctions and MIG-welded assembly contribute to the structural design, while a removable belt spacer supports final drive serviceability. The 2026 Harley-Davidson® Low Rider® ST features a wheelbase of 63.6 inches, a rake angle of 28 degrees, and a fork angle of 28 degrees. The trail measures 5.7 inches, contributing to the motorcycle's steering geometry.
Dimensions and Weight Specifications
The motorcycle measures 92.9 inches in overall length, 35 inches in width, and 50.8 inches in height. Laden seat height is specified at 27 inches, while unladen seat height measures 28.1 inches. Static ground clearance is listed at 5.7 inches. The motorcycle has an as-shipped weight of 686 pounds and a running-order weight of 712 pounds. Gross vehicle weight rating is 1,160 pounds, supported by a front gross axle weight rating of 450 pounds and a rear gross axle weight rating of 730 pounds.
Suspension, Wheels, and Tires
The suspension package of the 2026 Harley-Davidson® Low Rider® ST combines modern front-end architecture with a concealed rear suspension design. The front suspension utilizes a single-cartridge 43 mm inverted fork equipped with aluminum fork triple clamps and a single-rate spring. This assembly provides the motorcycle's front suspension travel of 5 inches. The inverted fork configuration forms an integral part of the motorcycle's handling package and contributes to the overall chassis layout.
Rear Suspension System
Rear suspension duties are managed by a hidden free-piston coil-over monoshock. The shock features a 56 mm stroke and incorporates hydraulic preload adjustment. Rear wheel travel is specified at 4.4 inches. The monoshock arrangement centralizes suspension components within the motorcycle's structure while providing adjustment capability through the hydraulic preload system.
Wheel and Tire Configuration
The 2026 Harley-Davidson® Low Rider® ST rides on Radiate Cast Aluminum wheels, with chrome front and rear wheel specifications listed for the model. The front wheel measures 19 inches in diameter and 2.5 inches in width, while the rear wheel measures 16 inches in diameter and 5 inches in width. Michelin® Scorcher 31 tires are fitted at both ends of the motorcycle. The front tire specification is 110/90B19,62H,BW, while the rear tire specification is 180/70B16,77H,BW.
Braking Systems and Rider Safety Technology
The braking system of the 2026 Harley-Davidson® Low Rider® ST utilizes dual front brakes paired with a single rear brake assembly. Front braking is handled by 4-piston fixed calipers, while the rear brake uses a 2-piston floating caliper. Black Split 7-spoke floating rotors are used at both ends of the motorcycle. Front rotor diameter measures 11.8 inches with a thickness of 0.2 inches, while the rear rotor measures 11.5 inches in diameter and 0.23 inches in thickness.
Standard Safety Systems
Anti-lock Braking System functionality is included as standard equipment on the 2026 Harley-Davidson® Low Rider® ST. The motorcycle also incorporates a Traction Control System and a Drag-torque Slip Control System. Tire Pressure Monitoring System functionality is included as part of the standard rider-assistance package. These systems work alongside the motorcycle's mechanical braking and chassis components to provide additional rider support. Their inclusion reflects the integration of electronic safety technologies within the overall vehicle architecture.
Cornering Rider Safety Enhancements
The 2026 Harley-Davidson® Low Rider® ST includes Cornering Enhanced Anti-lock Brake System technology as part of its rider safety equipment. Cornering Enhanced Traction Control System functionality is also included, providing an additional layer of electronic support. The motorcycle further incorporates Cornering Drag-Torque Slip Control System capability. Together, these cornering-focused systems expand the model's safety technology package while complementing the standard ABS, traction control, and slip control features already included on the motorcycle.
Electrical Equipment and Rider Information Systems
The electrical system of the 2026 Harley-Davidson® Low Rider® ST is designed around a sealed, maintenance-free absorbed glass mat battery. The battery is rated at 12 volts, 17.5Ah, and 310 cold cranking amps at 0°F. Electrical charging is supplied by a three-phase 48-amp system that produces 364 watts at 13 volts and 900 rpm, with maximum output reaching 624 watts at 13 volts and 2,000 rpm. Starting duties are performed by a 1.6 kW electric starter featuring solenoid shift starter motor engagement. These components provide the electrical foundation required to support the motorcycle's instrumentation, lighting, and electronic systems.
LED Lighting Systems
The motorcycle utilizes LED lighting throughout its primary lighting package. The headlamp assembly incorporates LED low beam, high beam, and signature position lamp functions. Rear visibility is supported by an LED tail and stop lamp configuration. Front and rear turn signals also utilize LED Bullet Turn Signal assemblies. This lighting package provides consistent technology across the motorcycle's primary illumination and signaling systems.
Instrumentation and Rider Information Display
The 2026 Harley-Davidson® Low Rider® ST features a 4-inch analog speedometer integrated with a digital information display. The display provides gear position, odometer readings, fuel level information, ride mode indication, heated gear status, traction control status, ABS indication, tire pressure monitoring information, cruise control indication, clock functions, trip information, range calculations, and tachometer data. This collection of information allows the rider to monitor multiple vehicle functions from a centralized display location. The motorcycle also includes a USB Type-C power outlet capable of providing 5V output at 2.4 amps. This functionality adds practical device-charging capability while maintaining the motorcycle's streamlined equipment package.
Utility, Capacity, and Rider-Focused Functionality
The 2026 Harley-Davidson® Low Rider® ST combines performance-oriented mechanical systems with practical utility features that support day-to-day operation. Fuel capacity is specified at 5 gallons, while reserve fuel capacity associated with the fuel injection warning system is listed at 1 gallon. Oil capacity with filter is 5 quarts, transmission capacity is 1 quart, and primary chain case capacity is 1.25 quarts. The model also provides 2 cubic feet of luggage volume, adding useful carrying capacity within the overall vehicle package.
Operational Characteristics
The motorcycle's combination of fuel capacity, storage volume, chassis dimensions, and instrumentation contributes to its functional versatility. Riders benefit from clear access to operational information through the integrated gauge display while retaining practical storage capacity. The hydraulic preload adjustment built into the rear suspension provides an additional means of adapting the motorcycle's setup. Combined with the fuel system, drivetrain, and chassis specifications, these features support the motorcycle's intended balance of performance and utility.
