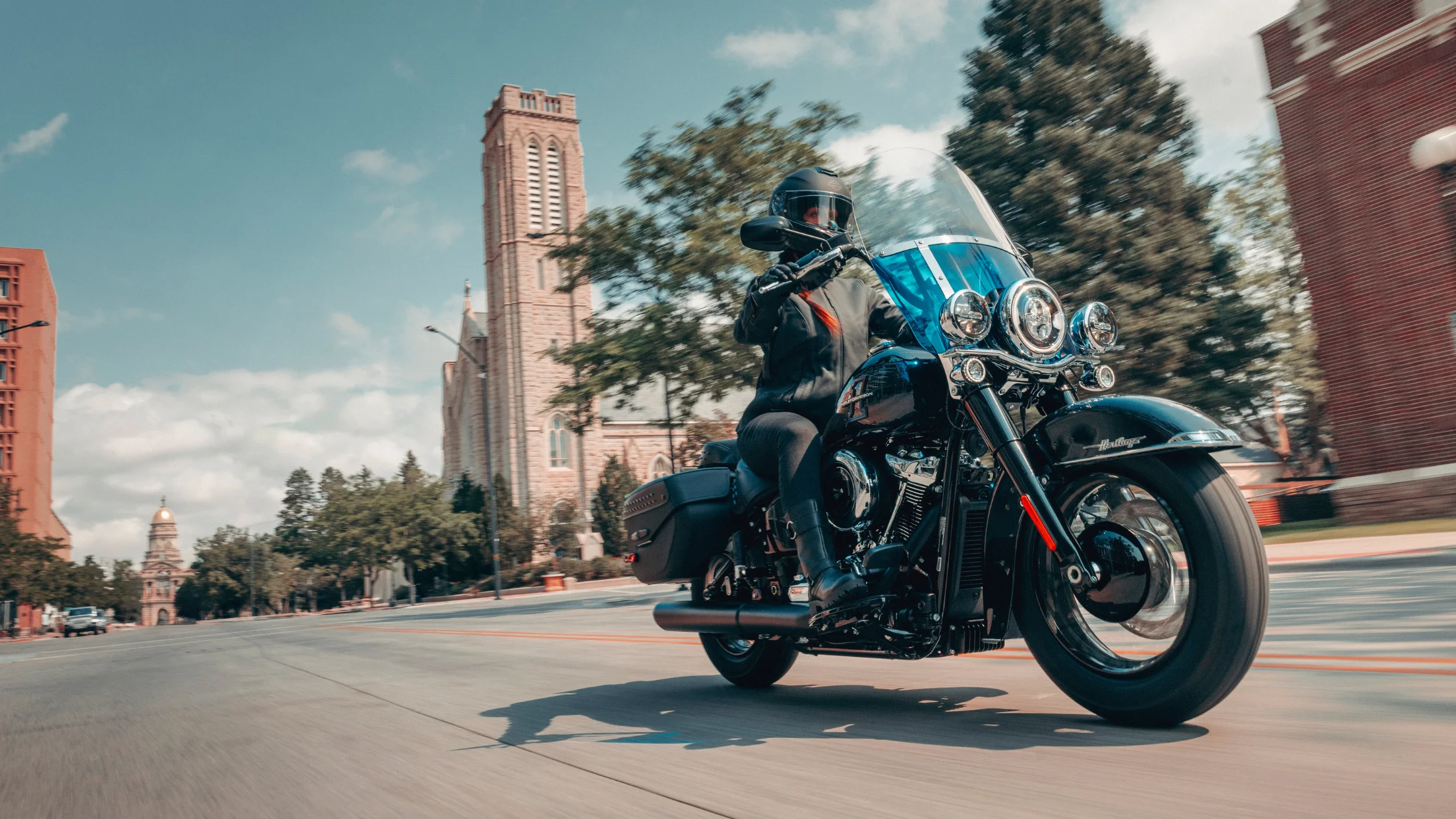

The 2026 Harley-Davidson® Heritage Classic is a touring-focused motorcycle that combines traditional Harley-Davidson® styling with a modern powertrain, electronic rider aids, and a chassis engineered for long-distance comfort and consistent road performance. Built around the Milwaukee-Eight® 117 Classic engine, the model integrates a large-displacement V-twin platform with a six-speed transmission, electronic fuel injection, and a range of standard safety technologies. Its specifications emphasize balanced performance, rider information accessibility, and functional equipment designed to support everyday riding and extended travel. The 2026 Harley-Davidson® Heritage Classic also incorporates LED lighting, advanced braking technologies, tire pressure monitoring, and a suspension system engineered to deliver controlled handling across a variety of riding conditions.
Engine and Powertrain
The 2026 Harley-Davidson® Heritage Classic is powered by the Milwaukee-Eight® 117 Classic engine, a 1,923 cc V-twin with a displacement of 117 cubic inches. The engine uses pushrod-operated overhead valves with hydraulic self-adjusting lifters and four valves per cylinder. This configuration supports efficient valve operation while reducing routine adjustment requirements. A bore of 4.075 inches and a stroke of 4.5 inches contribute to the engine’s overall displacement and operating characteristics. The engine also utilizes a 10.3:1 compression ratio, providing the foundation for its rated output.
Fuel Delivery and Air Management
Fuel delivery is handled through Electronic Sequential Port Fuel Injection, which supplies fuel directly and consistently to the engine. The intake system incorporates a 9-inch round air cleaner featuring a center bolt cover and washable fiberglass filter media. This design allows the motorcycle to maintain airflow while supporting serviceability. The exhaust system uses a 2-into-1 configuration with a catalyst located in the header.
Output and Operating Characteristics
The 2026 Harley-Davidson® Heritage Classic produces a rated 120 ft-lb of torque at 2,500 rpm and 98 horsepower, or 73 kW, at 4,600 rpm. The torque rating reflects the engine’s ability to generate substantial pulling power at relatively low engine speeds. Harley-Davidson® measures engine torque using the J1349 testing method. Power delivery works in conjunction with the six-speed drivetrain to provide a broad operating range across a variety of riding conditions.
Lubrication and Capacity Specifications
The engine utilizes a pressurized dry-sump lubrication system equipped with an oil cooler. This arrangement separates oil storage from the crankcase while maintaining lubrication throughout engine operation. Oil capacity with filter is specified at 5 quarts. Fuel capacity is listed at 5 gallons, and the fuel injection warning system includes a reserve fuel capacity of approximately 1 gallon. These capacities support extended riding intervals while providing riders with clear fuel reserve information.
Drivetrain and Transmission
The drivetrain of the 2026 Harley-Davidson® Heritage Classic combines mechanical durability with established Harley-Davidson® drive system architecture. Power transfers through a chain primary drive with a 34/46 ratio before reaching the transmission. Final power delivery to the rear wheel occurs through a belt final drive utilizing a 32/66 ratio. This combination forms the complete driveline system connecting engine output to rear-wheel propulsion.
Clutch Design and Gear Ratios
The motorcycle uses a mechanical 10-plate wet clutch with assist and conventional operation. This clutch design manages engine torque transfer while supporting consistent engagement characteristics. The transmission is a 6-Speed Cruise Drive® unit that provides six forward gear ratios. Overall gearing is specified at 9.311 in first gear, 6.454 in second gear, 4.793 in third gear, 3.882 in fourth gear, 3.307 in fifth gear, and 2.79 in sixth gear. The progression between ratios allows the drivetrain to work efficiently across a broad range of speeds and operating conditions.
Chassis and Structural Engineering
The chassis of the 2026 Harley-Davidson® Heritage Classic is built around a mild steel tubular frame with a rectangular-section backbone. The frame incorporates stamped, cast, and forged junctions connected through MIG welding processes. Aluminum forged fender supports contribute to the overall structure while supporting bodywork mounting requirements. This combination of materials and manufacturing methods creates the foundation for the motorcycle’s handling and load-carrying capability.
Swingarm Construction
The swingarm uses mild steel tubular sections combined with a stamped cross-member design. Forged axle junctions and MIG-welded construction contribute to structural integrity throughout the assembly. The design also incorporates a removable belt spacer as part of the rear drive arrangement. Together, these elements support rear-wheel alignment and suspension function while integrating with the belt final drive system.
Dimensions and Geometry
The 2026 Harley-Davidson® Heritage Classic measures 95.1 inches in overall length, 36.6 inches in overall width, and 54.7 inches in overall height. The wheelbase is 64.2 inches, providing a substantial foundation for the motorcycle’s chassis layout. Steering geometry includes a 30-degree rake, a 30-degree fork angle, and 5.5 inches of trail. Seat height is specified at 26.3 inches when laden and 27.2 inches when unladen. Static ground clearance measures 4.7 inches.
Suspension System
The suspension system is engineered to work in conjunction with the motorcycle’s chassis geometry and overall weight distribution. Front suspension duties are handled by a dual-bending valve 49 mm telescopic fork. The fork incorporates aluminum triple clamps, dual-rate springs, and traditional “beer can” covers. This arrangement is designed to manage front-wheel movement while maintaining steering stability and rider control.
Rear Suspension Configuration
At the rear, the 2026 Harley-Davidson® Heritage Classic uses a hidden free-piston coil-over monoshock. The shock provides 56 mm of stroke and includes hydraulic preload adjustment. This design allows preload settings to be adjusted to accommodate varying riding conditions and load requirements. Suspension travel measures 5.1 inches at the front and 4.4 inches at the rear.
Wheels, Tires, and Handling Characteristics
The 2026 Harley-Davidson® Heritage Classic rides on black 9-spoke cast aluminum wheels at both ends. Front and rear wheels measure 16 inches in diameter and 3 inches in width. Harley-Davidson® also lists an optional black tubeless laced wheel configuration featuring 36 bright spokes. These wheel options provide different appearance choices while maintaining compatibility with the motorcycle’s chassis design.
Tire Specifications
The motorcycle uses Dunlop® Harley-Davidson® Series bias blackwall tires. Up front, the 2026 Harley-Davidson® Heritage Classic is equipped with a D401F tire in 130/90B16 73H BW specification. At the rear, a D401T tire in 150/80B16 77H BW specification is fitted. Tire selection works alongside the suspension, wheel dimensions, and steering geometry to support handling consistency and overall vehicle stability.
Lean Angle Measurements
Lean angle performance is measured using the J1168 testing method. The 2026 Harley-Davidson® Heritage Classic records a right lean angle of 27.4 degrees and a left lean angle of 27.4 degrees. These measurements provide a standardized indication of available cornering clearance.
Braking Systems and Rider Safety Technologies
The braking system combines mechanical braking hardware with electronic rider-assistance technologies. Front braking uses a 4-piston fixed caliper paired with a solid, uniform-expansion rotor measuring 11.8 inches in diameter. The rotor thickness is specified at 0.2 inches. Rear braking is handled by a 2-piston floating caliper and an 11.5-inch solid uniform-expansion rotor with a thickness of 0.23 inches.
Anti-Lock Braking and Traction Management
Anti-lock Braking System functionality is included as standard equipment. The motorcycle also incorporates a Traction Control System and a Drag-Torque Slip Control System. These technologies are designed to support vehicle stability by assisting riders during varying traction conditions. Tire Pressure Monitoring System functionality is also included. Together, these systems expand the motorcycle’s electronic safety capabilities beyond conventional braking hardware.
Cornering Rider Safety Enhancements
The 2026 Harley-Davidson® Heritage Classic includes Cornering Enhanced Anti-lock Brake System technology. Cornering Enhanced Traction Control System and Cornering Drag-Torque Slip Control System are also standard equipment. These systems are designed to work in conjunction with the motorcycle’s sensors and control systems during cornering situations. Their inclusion adds another layer of electronic rider support while complementing the chassis, braking, and traction-management systems already integrated into the motorcycle.
Electrical System and Lighting
The electrical system is built around a sealed, maintenance-free absorbed glass mat battery rated at 12 volts, 17.5 amp-hours, and 310 cold-cranking amps at 0°F. Electrical generation is provided by a three-phase 48-amp charging system. Output is rated at 364 watts at 13 volts and 900 rpm, with maximum power reaching 624 watts at 13 volts and 2,000 rpm. These specifications support the motorcycle’s lighting, instrumentation, and accessory power requirements.
Starting and Illumination Equipment
Engine starting is handled by a 1.6 kW electric starter system with solenoid shift starter motor engagement. Lighting equipment consists entirely of LED components. The headlamp incorporates low-beam, high-beam, and signature position lamp functions. Additional lighting includes an LED tail and stop lamp, LED Bullet Turn Signals, a rear LED bullet light bar, and LED fog lamps. The use of LED technology provides consistent illumination across the motorcycle’s lighting systems.
Instrumentation and Rider Information
The 2026 Harley-Davidson® Heritage Classic utilizes a 5-inch analog speedometer integrated with a digital information display. This instrument package presents a broad range of vehicle and rider information within a centralized interface. Displayed functions include gear position, odometer readings, fuel level information, ride modes, heated gear indication, traction control status, ABS status, TPMS information, cruise control indication, clock functions, trip information, range calculations, and tachometer indication. The display configuration allows riders to monitor multiple vehicle systems without requiring separate instruments.
Connectivity and Power Features
A USB-C Type power outlet is included and provides an output of 5 volts at 2.4 amps. This outlet supports charging compatibility for external electronic devices that use USB-C connectivity. The motorcycle does not include an infotainment system, display screen, integrated speakers, Bluetooth® phone connectivity, navigation functions, or related multimedia equipment. Instead, the electronic equipment package focuses on vehicle information, rider awareness, lighting systems, and power delivery for compatible accessories and devices.
Capacity and Practical Utility
The 2026 Harley-Davidson® Heritage Classic combines touring-oriented capacities with substantial carrying capability. Luggage capacity is specified at 1.6 cubic feet, providing dedicated storage volume for travel-related items. The motorcycle has a running-order weight of 719 pounds and a shipped weight of 690 pounds. Gross Vehicle Weight Rating is listed at 1,160 pounds, while the front and rear Gross Axle Weight Ratings are 450 pounds and 730 pounds, respectively.
Fuel Economy and Ownership Considerations
Fuel economy is rated at 47 mpg using an estimated city and highway testing method. This figure complements the motorcycle’s 5-gallon fuel capacity and reserve fuel warning system. The combination of fuel capacity, drivetrain specifications, and engine characteristics contributes to the motorcycle’s operational range between refueling stops. Service intervals begin with an initial service at 1,000 miles, followed by service intervals every 5,000 miles thereafter. These maintenance schedules help establish a structured service routine throughout ownership.
