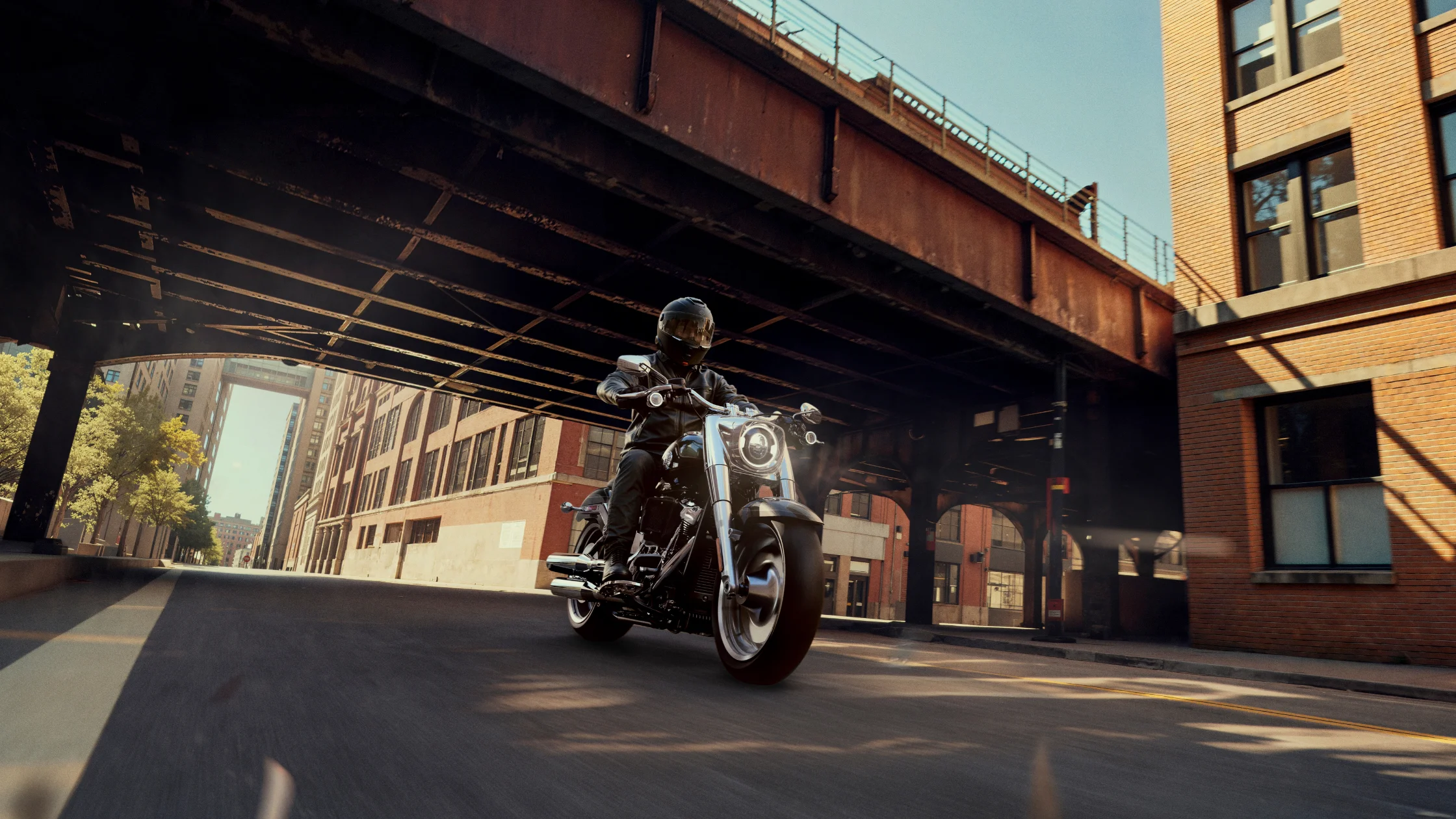

The 2026 Harley-Davidson® Fat Boy® is a cruiser motorcycle built around the Milwaukee-Eight® 117 Custom engine, a steel Softail® chassis, and a broad range of integrated rider technology and safety systems. Designed with a focus on power delivery, chassis stability, and rider control, the model combines a large-displacement V-Twin engine with modern electronic rider aids and a carefully engineered suspension package. The motorcycle also incorporates LED lighting, digital instrumentation, and a range of functional equipment intended to support daily operation and long-distance riding.
Engine Design and Performance
The 2026 Harley-Davidson® Fat Boy® is powered by the Milwaukee-Eight® 117 Custom engine, a large-displacement V-Twin that provides the foundation for the motorcycle's performance characteristics. This engine features a displacement of 117 cubic inches, or 1,923 cc, achieved through a bore of 4.075 inches and a stroke of 4.5 inches. A compression ratio of 10.3:1 contributes to the engine's operating characteristics while supporting efficient combustion within the specified design parameters. The engine is engineered to deliver strong output throughout its operating range while working in conjunction with the motorcycle's six-speed transmission and belt final drive system.
Milwaukee-Eight® 117 Custom Architecture
The engine utilizes pushrod-operated overhead valves with hydraulic self-adjusting lifters and four valves per cylinder. This configuration reduces routine valve adjustment requirements while maintaining consistent valve operation throughout normal use. Electronic Sequential Port Fuel Injection manages fuel delivery, helping the engine maintain accurate fuel metering under varying operating conditions. Air enters the engine through a Helix-style air cleaner, while exhaust gases exit through a 2-into-2 staggered exhaust system that incorporates a catalyst within the muffler assembly.
Torque and Power Output
Harley-Davidson® rates the Milwaukee-Eight® 117 Custom engine at 126 ft-lb of torque at 3,000 rpm. Peak power is listed at 103 horsepower, or 77 kW, at 4,800 rpm. These figures illustrate the engine's capability to generate substantial output across a broad operating range. The combination of displacement, compression ratio, and fuel injection technology contributes to the motorcycle's overall performance profile. Engine performance testing was conducted using the J1349 testing method, providing standardized measurement conditions for the published output figures.
Lubrication and Fuel Capacity
The engine uses a pressurized dry-sump lubrication system equipped with an oil cooler. This configuration separates oil storage from the crankcase and supports consistent lubrication throughout engine operation. Oil capacity with filter measures 5 quarts, or 4.7 liters, providing the volume specified for proper lubrication and cooling. The motorcycle carries 5 gallons, or 18.9 liters, of fuel, while the fuel injection warning light reserve capacity is listed at 1 gallon, or 3.8 liters. Estimated fuel economy is rated at 47 mpg, or 5 l/100 km, according to estimated city and highway testing procedures.
Drivetrain and Power Delivery
The drivetrain of the 2026 Harley-Davidson® Fat Boy® is designed to transfer engine output efficiently from the crankshaft to the rear wheel. The system combines a chain primary drive, a mechanical wet clutch, a six-speed transmission, and a belt final drive. Each component is matched to the characteristics of the Milwaukee-Eight® 117 Custom engine and contributes to the motorcycle's overall riding dynamics. The drivetrain architecture emphasizes durability, smooth engagement, and consistent power transfer.
Primary and Final Drive Systems
Primary power transmission begins through a chain drive with a 34/46 ratio. Final power delivery reaches the rear wheel through a belt drive system with a 32/66 ratio. This arrangement forms a complete drivetrain path from the engine to the rear wheel while maintaining the mechanical layout specified for the FLFB platform.
Clutch and Transmission
The clutch is a mechanical 10-plate wet design that incorporates assist and conventional operation. This configuration supports controlled engagement and disengagement during shifting and low-speed maneuvering. Power is routed through a 6-Speed Cruise Drive® transmission, providing six forward gear ratios. Overall gear ratios are listed as 9.311 in first gear, 6.454 in second gear, 4.793 in third gear, 3.882 in fourth gear, 3.307 in fifth gear, and 2.79 in sixth gear. These ratios define the relationship between engine speed and rear wheel speed throughout the transmission's operating range.
Chassis Construction and Dimensions
The chassis of the 2026 Harley-Davidson® Fat Boy® combines steel construction, engineered geometry, and integrated structural components designed to support the motorcycle's performance and handling characteristics. Frame design, steering geometry, wheelbase dimensions, and weight distribution all contribute to the motorcycle's operational behavior. The chassis serves as the foundation for the suspension, braking, drivetrain, and rider interface systems.
Frame and Swingarm Design
The frame is constructed from mild steel tubular sections and incorporates a rectangular-section backbone. Stamped, cast, and forged junctions are integrated into the structure and joined using MIG welding techniques. Aluminum forged fender supports form part of the overall chassis assembly. The swingarm uses mild steel tubular sections along with a stamped cross-member and forged axle junctions. The swingarm is also MIG-welded and incorporates a removable belt spacer as part of its design.
Dimensions and Rider Position
The motorcycle measures 93.1 inches in overall length, 40 inches in overall width, and 44.1 inches in overall height. Laden seat height is specified at 25.9 inches, while unladen seat height measures 26.6 inches. Static ground clearance is listed at 4.9 inches. These dimensions contribute to the motorcycle's riding position and overall physical footprint. The wheelbase measures 65 inches, establishing the distance between the front and rear axles and influencing the motorcycle's handling characteristics.
Steering Geometry
Steering geometry includes a 30-degree steering head rake and a 32-degree fork angle. Trail measures 4.1 inches, or 104 mm. These measurements define the relationship between the front wheel, steering axis, and chassis structure. Lean angle capability is listed at 25.6 degrees on both the right and left sides.
Suspension, Wheels, and Tires
The suspension system of the 2026 Harley-Davidson® Fat Boy® combines telescopic front suspension with a hidden rear monoshock arrangement. The design balances wheel control, ride quality, and chassis stability while maintaining the motorcycle's structural layout. Suspension components work alongside the wheel and tire package to support handling and rider comfort.
Front Suspension System
The front suspension uses a dual-bending valve 49 mm telescopic fork. Aluminum fork triple clamps provide structural support, while dual-rate springs contribute to suspension function across varying operating conditions. The fork assembly also incorporates distinctive "beer can" covers. Front suspension travel measures 5.1 inches, or 130 mm, providing the specified range of movement for front wheel control.
Rear Suspension System
Rear suspension is handled by a hidden free-piston coil-over monoshock. The shock provides 43 mm of stroke and includes hydraulic preload adjustment. This adjustability allows preload settings to be modified according to riding requirements. Rear suspension travel measures 3.4 inches, or 86 mm, completing the suspension package specified for the model.
Wheels and Tire Specifications
The motorcycle rides on machined Lakester cast aluminum wheels at both ends. The front wheel measures 18 inches in diameter and 4.5 inches in width, while the rear wheel measures 18 inches in diameter and 8 inches in width. Tire fitment consists of Michelin® Scorcher 11 tires front and rear. The front tire specification is 160/60R18 70V BW, and the rear tire specification is 240/40R18 79V BW. These components form the motorcycle's direct connection to the road surface and contribute to its handling and stability characteristics.
Braking Systems and Rider Safety Technology
The 2026 Harley-Davidson® Fat Boy® incorporates a combination of mechanical braking components and electronic rider safety systems. These technologies work together to support rider control under a variety of operating conditions. The braking package is complemented by both standard and cornering-enhanced rider assistance systems.
Brake Components
The front brake utilizes a 4-piston fixed caliper, while the rear brake uses a 2-piston floating caliper. Front and rear braking systems use silver Split 7-spoke floating rotors. The front rotor measures 11.8 inches in diameter with a thickness of 0.2 inches, while the rear rotor measures 11.5 inches in diameter with a thickness of 0.23 inches. The front brake configuration is not dual-disc. An anti-lock braking system is included as standard equipment.
Standard Rider Safety Systems
The motorcycle includes the Traction Control System and the Drag-Torque Slip Control System as part of its standard rider safety package. Tire Pressure Monitoring System is also included. These systems provide electronic support functions that complement the motorcycle's mechanical controls and braking hardware. Electronic Linked Braking, Vehicle Hold Control, and Wheel Lift Mitigation are not listed as equipped features on this model.
Cornering Rider Safety Enhancements
The 2026 Harley-Davidson® Fat Boy® also includes cornering-focused rider assistance technologies. Cornering Enhanced Anti-lock Brake System is included as standard equipment. Cornering Enhanced Traction Control System and Cornering Drag-Torque Slip Control System are also included. Cornering Enhanced Electronic Linked Braking and Enhanced Lift Mitigation are listed as not applicable for this model.
Electrical Equipment and Rider Information Systems
The electrical system supports vehicle starting, charging, lighting, rider information displays, and accessory power functions. Harley-Davidson® equips the 2026 Harley-Davidson® Fat Boy® with a modern electrical package designed to support both operational requirements and rider convenience. The electrical architecture integrates battery, charging, instrumentation, and lighting systems into a unified platform.
Battery, Charging, and Starting Systems
Power is supplied by a sealed maintenance-free absorbed glass mat battery rated at 12 volts, 17.5 Ah, and 310 CCA at 0°F. Charging duties are handled by a three-phase 48-amp system. Output is rated at 364 watts at 13 volts and 900 rpm, with maximum output reaching 624 watts at 13 volts and 2,000 rpm. Engine starting is accomplished through a 1.6 kW electric starter system with solenoid shift starter motor engagement.
LED Lighting Equipment
Lighting equipment consists entirely of LED technology. The headlamp incorporates low-beam and high-beam functionality along with signature position lighting. Rear lighting uses bullet-style LED stop, tail, and turn signal assemblies. Front turn signals are LED Bullet Turn Signals, and rear turn signals use the same LED Bullet Turn Signal design. Auxiliary lamps are not included.
Instrumentation and Rider Information
The primary instrument display is a 5-inch analog speedometer that incorporates a digital information section. Riders can view gear position, odometer readings, fuel level, ride modes, heated gear information, traction control status, ABS status, TPMS information, cruise control indication, clock functions, trip data, range estimates, and tachometer information. A USB Type-C power outlet provides 5V output at 2.4 amps for compatible devices. The model does not include an infotainment system, GPS navigation system, Bluetooth® connectivity, phone connectivity, integrated speakers, or a reverse system.
Weight Ratings and Operating Capacities
Weight ratings and fluid capacities provide important operational specifications for the 2026 Harley-Davidson® Fat Boy®. These measurements define vehicle loading parameters and service-related capacities for major systems. Understanding these figures helps illustrate the motorcycle's overall design and operating characteristics.
Vehicle Weights and Ratings
The motorcycle has an as-shipped weight of 668 pounds and a running-order weight of 694 pounds. Gross Vehicle Weight Rating is specified at 1,175 pounds. Gross Axle Weight Rating is listed at 450 pounds for the front axle and 760 pounds for the rear axle. Luggage capacity by volume is not listed for this model.
Service-Related Capacities
Transmission fluid capacity measures 1 quart, or 0.95 liters. Primary chain case capacity is specified at 1.43 quarts, or 1.35 liters. Coolant capacity is listed as not applicable. These capacities complement the engine oil and fuel capacities previously discussed and complete the primary service-related specifications provided for the model.
