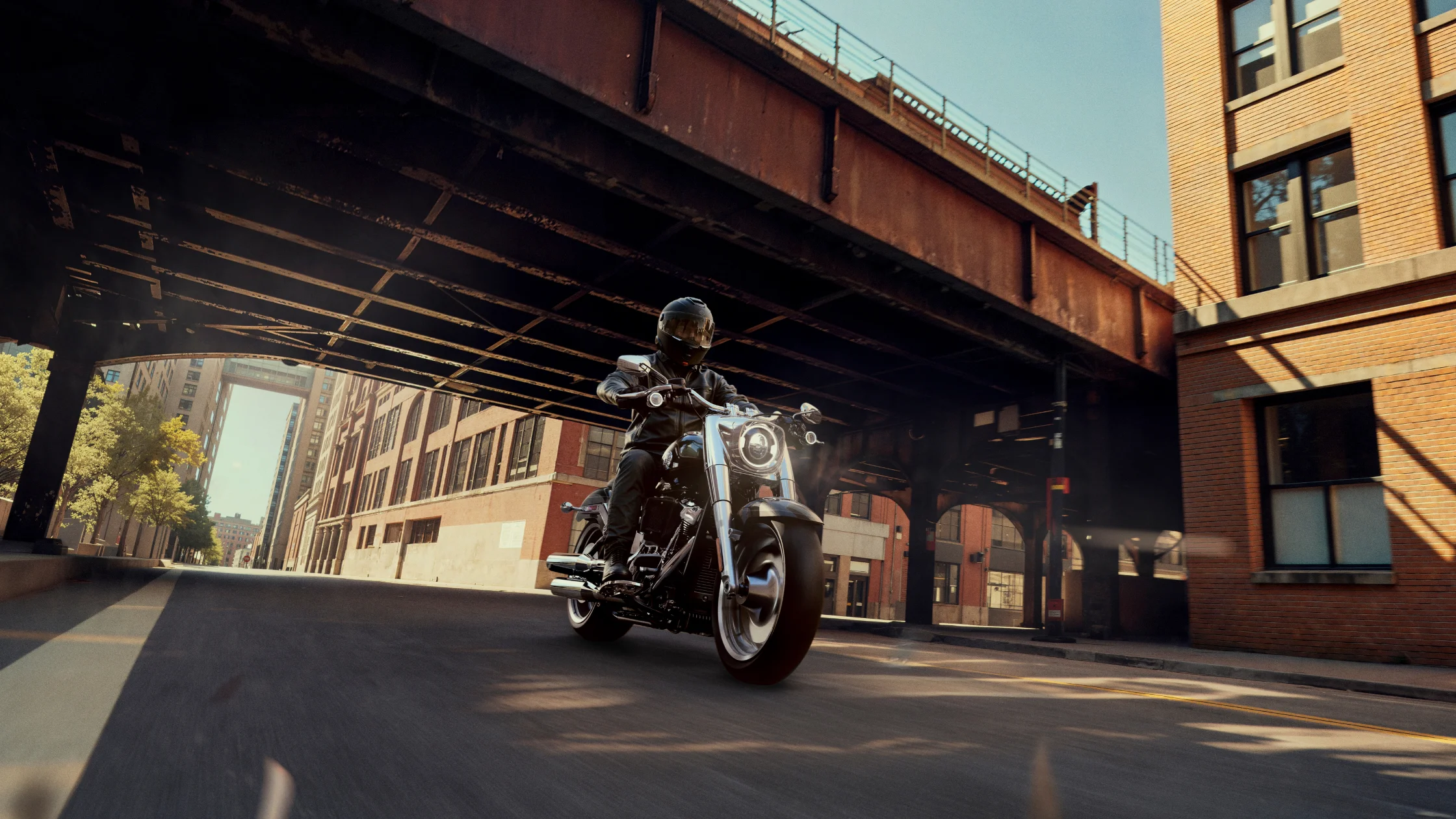

The 2026 Harley-Davidson® Fat Boy® is engineered as a large-displacement cruiser with a focus on mechanical consistency, structural durability, and controlled performance output. The model integrates a Milwaukee-Eight® 117 Custom engine, a six-speed transmission system, and a steel-based chassis designed to support both stability and load capacity. Its configuration reflects a balance between low-speed maneuverability and sustained highway operation, supported by calibrated suspension geometry and electronic rider aids. The specifications outlined below provide a detailed examination of the motorcycle’s measurable attributes and system components.
Engine Configuration and Output Characteristics
The 2026 Harley-Davidson® Fat Boy® is powered by a Milwaukee-Eight® 117 Custom engine with a displacement of 117 cubic inches, equivalent to 1,923 cubic centimeters. The engine uses a pushrod-operated valvetrain with overhead valves and hydraulic self-adjusting lifters. Each cylinder contains four valves, supporting efficient airflow and combustion.
The bore measures 4.075 inches, and the stroke is 4.5 inches. This configuration supports a compression ratio of 10.3:1, contributing to consistent combustion efficiency. The engine produces 126 ft-lb of torque at 3,000 rpm and generates 103 horsepower at 4,800 rpm. These values indicate strong low-end torque delivery combined with sustained mid-range power.
Fuel delivery is managed through Electronic Sequential Port Fuel Injection, which regulates fuel distribution based on engine demand. The intake system includes a Helix-style air cleaner that promotes airflow efficiency. The exhaust system uses a 2-into-2 staggered layout with an integrated catalyst in the muffler, supporting emissions compliance while maintaining exhaust flow.
Lubrication is handled through a pressurized dry-sump system with an oil cooler. This design maintains stable oil circulation and temperature control during extended operation. The absence of liquid cooling reflects an air-cooled configuration with oil-assisted temperature regulation.
Drivetrain and Gear Ratio Distribution
The drivetrain consists of a chain-driven primary system with a 34 to 46 ratio and a belt-driven final system with a 32 to 66 ratio. This arrangement reduces maintenance requirements while maintaining efficient power transfer.
The transmission is a 6-Speed Cruise Drive® unit. It provides a progressive range of gear ratios designed for controlled acceleration and reduced engine load at higher speeds. The first gear ratio is 9.311, followed by 6.454 in second gear and 4.793 in third gear. Fourth gear is set at 3.882, fifth gear at 3.307, and sixth gear at 2.79. This distribution supports both low-speed responsiveness and highway cruising efficiency.
The clutch system uses a mechanical, 10-plate wet configuration with assist functionality. This design reduces lever effort while maintaining consistent engagement during shifting.
Frame Construction and Structural Components
The frame is constructed from mild steel with a tubular configuration and a rectangular-section backbone. It incorporates stamped, cast, and forged junctions that are MIG welded for structural consistency. Aluminum forged fender supports are integrated to reduce weight without compromising rigidity.
The swingarm uses mild steel tubular sections combined with a stamped cross-member and forged axle junctions. This structure supports load distribution and contributes to overall chassis stability. A removable belt spacer is included as part of the swingarm assembly.
The overall design of the frame and swingarm supports a balance between rigidity and controlled flex, which contributes to predictable handling under varying load conditions.
Suspension Design and Travel Measurements
The front suspension uses a 49 mm telescopic fork equipped with dual-bending valve technology. This system includes dual-rate springs and aluminum fork triple clamps. The configuration is designed to provide consistent damping across different road surfaces.
The rear suspension consists of a hidden coil-over monoshock with a 43 mm stroke. It includes hydraulic preload adjustment, allowing for manual tuning based on rider weight and load conditions.
Front suspension travel measures 5.1 inches, while rear suspension travel is 3.4 inches. These values indicate a setup that prioritizes stability and controlled movement rather than extended travel.
Dimensions, Geometry, and Ergonomic Positioning
The 2026 Harley-Davidson® Fat Boy® has a total length of 93.1 inches, with an overall width of 40 inches and a height of 44.1 inches. The wheelbase measures 65 inches, contributing to longitudinal stability.
The steering geometry includes a rake angle of 30 degrees and a fork angle of 32 degrees. Trail is measured at 4.1 inches. This configuration supports steady handling characteristics and consistent steering response.
Seat height is 25.9 inches when laden and 26.6 inches when unladen. These measurements indicate a low seating position that supports rider stability at stops. Ground clearance is measured at 4.9 inches.
The 2026 Harley-Davidson® Fat Boy® uses Michelin® Scorcher 11 tires on both front and rear. The front tire specification is 160/60R18, while the rear tire measures 240/40R18. The wider rear tire contributes to traction and load distribution.
Wheels, Braking Components, and Control Systems
The wheels are machined Lakester cast aluminum units. The front wheel has a diameter of 18 inches and a width of 4.5 inches. The rear wheel also measures 18 inches in diameter with an 8-inch width.
The braking system includes a 4-piston fixed caliper on the front and a 2-piston floating caliper on the rear. The front rotor has a diameter of 11.8 inches and a thickness of 0.2 inches. The rear rotor measures 11.5 inches in diameter with a thickness of 0.23 inches. Both rotors use a split 7-spoke floating design.
Anti-lock Braking System is included as standard equipment. This system regulates braking pressure to prevent wheel lock during deceleration.
Electrical System and Instrumentation
The electrical system includes a sealed, maintenance-free absorbed glass mat battery rated at 12 volts and 17.5 amp-hours. It provides 310 cold cranking amps at 0 degrees Fahrenheit.
Charging is managed by a three-phase 48-amp system. It produces 364 watts at 13 volts and 900 rpm, with a maximum output of 624 watts at 2,000 rpm.
The starting system uses a 1.6 kW electric starter with solenoid shift engagement. This configuration supports consistent ignition performance.
Lighting components are fully LED-based. The headlamp includes both low and high beams with signature position lighting. The tail and stop lights use a bullet-style LED configuration, and both front and rear turn signals are LED units.
The instrument cluster features a 5-inch analog speedometer with an integrated digital display. The display provides information including gear position, odometer, fuel level, ride modes, traction control status, tire pressure monitoring system, cruise control, clock, trip data, range, and tachometer readings.
A USB-C power outlet provides 5 volts at 2.4 amps, allowing for device charging during operation.
Fuel Capacity, Consumption, and Operational Range
The fuel tank has a capacity of 5 gallons, with a reserve capacity of 1 gallon. This supports extended riding intervals between refueling.
Fuel economy is estimated at 47 miles per gallon under combined city and highway conditions. This value reflects the engine’s displacement and fuel injection system efficiency.
Oil capacity is 5 quarts with a filter, while the transmission holds 1 quart of fluid. The primary chain case capacity is 1.43 quarts.
Rider Safety Systems and Control Enhancements
The 2026 Harley-Davidson® Fat Boy® includes multiple rider assistance systems designed to support traction and braking control. Anti-lock Braking System is included as standard equipment.
The Traction Control System monitors wheel speed and adjusts power delivery to reduce wheel slip. The Drag-torque Slip Control System manages engine braking to prevent rear wheel lock during downshifting.
The Tire Pressure Monitoring System provides feedback on tire pressure levels, supporting proper maintenance and safety.
Cornering-enhanced systems include the Cornering Anti-lock Braking System, the Cornering Traction Control System, and the Cornering Drag-torque Slip Control System. These systems adjust their operation based on lean angle, supporting stability during turning maneuvers.
The lean angle capability is measured at 25.6 degrees on both the right and left sides, indicating symmetrical cornering limits.
Weight Distribution and Load Capacity
The 2026 Harley-Davidson® Fat Boy® has a running weight of 694 pounds and a shipped weight of 668 pounds. The Gross Vehicle Weight Rating is 1,175 pounds.
The front axle weight rating is 450 pounds, while the rear axle supports up to 760 pounds. These values indicate the load distribution capacity of the chassis and suspension system.
The absence of integrated luggage capacity reflects a design focused on structural simplicity and weight management.
