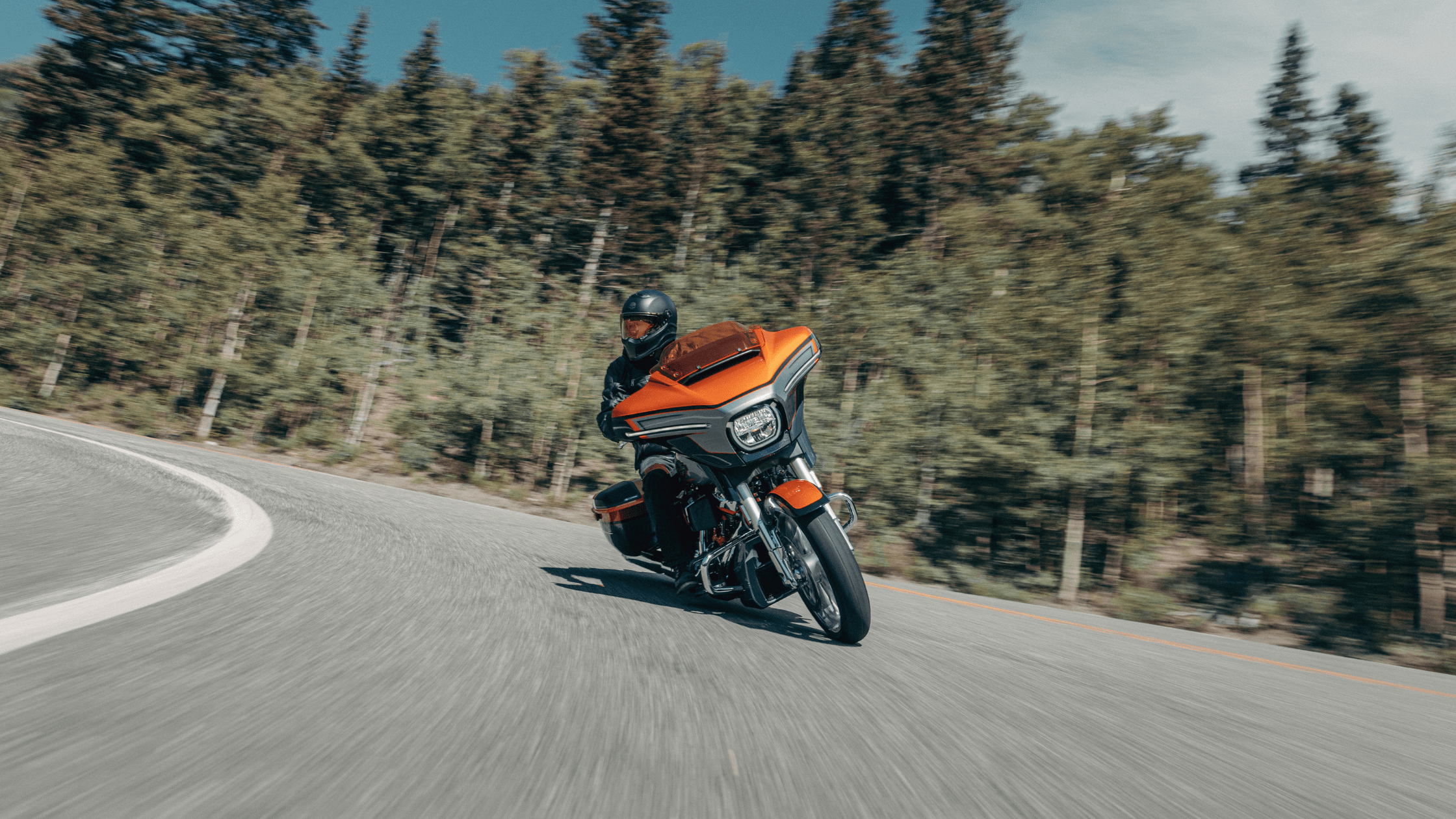

The 2026 Harley-Davidson® CVO™ Street Glide® is engineered as a touring motorcycle focused on measurable performance, structured chassis design, integrated electronics, and advanced rider assistance systems. The model combines a large-displacement V-twin engine with a reinforced steel frame, adjustable suspension, and extensive infotainment functionality. Every specification contributes to predictable handling, consistent power delivery, and long-distance operational capability. The motorcycle measures 94.9 inches in overall length, 38.4 inches in width, and 53.1 inches in height, establishing a platform designed for stability during highway travel. A laden seat height of 26.7 inches and a 64-inch wheelbase support low-speed control and balanced weight distribution. Static ground clearance measures 5.5 inches, while steering geometry includes a 26-degree rake and 6.7 inches of trail for controlled directional stability.
The motorcycle uses Dunlop® Harley-Davidson® Series tires paired with cast aluminum wheels measuring 19 inches at the front and 18 inches at the rear. These dimensions contribute to steering response while maintaining stability during extended travel. Fuel capacity reaches 6 gallons, allowing extended range between refueling intervals. The motorcycle carries a running weight of 838 pounds and supports a gross vehicle weight rating of 1,360 pounds. Storage volume totals 2.2 cubic feet, supporting practical touring functionality through integrated luggage design.
Engine Configuration and Power Specifications
The engine used in the 2026 Harley-Davidson® CVO™ Street Glide® is the Milwaukee-Eight® VVT 121. This powerplant displaces 121 cubic inches, equivalent to 1,977 cubic centimeters. The design employs pushrod-operated overhead valves with hydraulic self-adjusting lifters and four valves per cylinder, supporting efficient airflow and consistent mechanical operation. Bore measures 4.075 inches, while the stroke extends to 4.625 inches. An 11.4:1 compression ratio allows efficient combustion while maintaining power consistency across varied riding conditions.
Fuel delivery operates through Electronic Sequential Port Fuel Injection. This system controls fuel volume precisely, supporting smooth throttle response and consistent combustion performance. The engine uses a pressurized dry-sump lubrication system, which helps manage oil distribution and temperature control during extended riding durations. Air intake passes through a washable synthetic felt air cleaner, supporting airflow consistency while simplifying maintenance.
Performance output is measured at 139 ft-lb of torque at 3,000 rpm, accompanied by 115 horsepower at 4,500 rpm. These figures indicate a focus on usable torque delivery at lower engine speeds, supporting gradual acceleration and stable cruising capability. The 2-1-2 dual exhaust configuration contributes to exhaust flow efficiency while maintaining balanced engine breathing characteristics. Torque testing follows J1349 standards, confirming consistency in measurement methodology.
Drivetrain Engineering and Transmission Ratios
Power delivery from the engine reaches the rear wheel through a combination of chain and belt systems. The primary drive utilizes a chain with a 34/46 ratio, while the final drive employs a belt with a 32/68 ratio. This arrangement balances durability, smooth engagement, and reduced maintenance compared with fully chain-driven touring setups.
The clutch system is a mechanically actuated 10-plate wet assist-and-slip design. The assist function lowers lever effort during operation, while the slip mechanism improves stability during downshifts by controlling torque transfer. The transmission is a 6-Speed Cruise Drive® unit built to support both acceleration and steady highway operation. Gear ratios progress from 9.593 in first gear to 2.875 in sixth gear. Lower gears support controlled launch and urban maneuvering, while higher gears reduce engine RPM during cruising conditions. The ratio structure contributes to fuel efficiency and reduced vibration at sustained speeds.
Chassis Construction and Suspension Design
The frame of the 2026 Harley-Davidson® CVO™ Street Glide® consists of mild steel using a tubular design with a two-piece stamped and welded backbone. Cast and forged junctions reinforce structural integrity, while twin down tubes improve rigidity. The rear frame section bolts on and includes forged fender supports, contributing to serviceability and structural stability. MIG welding processes are applied throughout the frame and swingarm assemblies to maintain consistent manufacturing strength.
The front suspension uses 47 mm inverted forks. This configuration increases rigidity during braking and contributes to improved steering accuracy. The rear suspension consists of dual adjustable emulsion shocks. Preload adjustments include remote adjustment on the left shock and threaded preload control on the right shock. This layout supports load adaptation for varying rider and luggage conditions.
Front suspension travel measures 4.6 inches, while rear travel measures 3 inches. These measurements balance ride comfort and handling precision for a touring-focused motorcycle. Wheel construction uses gloss black 9-spoke cast aluminum designs that reduce unsprung weight while maintaining durability. Tire specifications include a 130/60B19 front and 180/55B18 rear, supporting traction and stability across varying surfaces.
Braking Hardware and Stability Systems
Braking performance comes from dual front floating rotors combined with a single fixed rear rotor. The front calipers are 32 mm 4-piston fixed units mounted radially, while the rear caliper uses an axially mounted configuration. Front rotor diameter measures 12.6 inches with a thickness of 0.18 inches, while the rear rotor measures 11.8 inches with a thickness of 0.28 inches. This setup delivers controlled braking force suited to the motorcycle’s touring weight and load capacity.
The braking system integrates Anti-lock Braking System functionality as standard equipment. Electronic Linked Braking coordinates front and rear brake application to improve stability during deceleration. Additional control systems include a Traction Control System and Drag-torque Slip Control System. Vehicle Hold Control assists during stops on inclines by maintaining brake pressure until throttle input begins. The Tire Pressure Monitoring System functionality continuously observes tire pressure levels to support safe operation.
Cornering-based rider enhancements expand braking and traction support during lean conditions. Cornering Enhanced Anti-lock Braking System, Cornering Electronic Linked Braking, Cornering Traction Control, and Cornering Drag-torque Slip Control all adjust system intervention based on lean angle data. These systems maintain predictable handling when braking or accelerating through turns.
Electrical Architecture and Lighting Systems
The electrical system includes a sealed maintenance-free 12-volt battery rated at 28 amp-hours with 405 cold cranking amps. Power generation comes from a three-phase 58-amp charging system capable of producing up to 754 watts at 13 volts. Starting function relies on a 1.6 kW electric starter with solenoid shift engagement, supporting consistent ignition performance.
Lighting systems are fully LED-based, including headlamp, tail lamp, stop lamp, and turn signals. LED lighting improves visibility while minimizing electrical draw. Digital gauges integrate into the main display, consolidating vehicle information in a central location. A 15-watt USB-C power outlet sits within the media storage compartment, supporting device charging and accessory use during travel.
The integrated GPS navigation system provides onboard routing functions through a connected Wi-Fi hotspot. The navigation layout aligns with the motorcycle’s display interface, enabling direct access from the main screen.
Infotainment System and Connectivity Functions
The infotainment system operates through Skyline™ OS and displays information on a 12.3-inch full-color TFT screen. Screen size and layout support clear visibility for navigation, media control, and vehicle diagnostics. Audio output reaches 125 watts per channel, powering a four-speaker setup composed of two 6.5-inch fairing speakers and two 5x7-inch saddlebag speakers. This configuration distributes sound evenly throughout the rider environment.
Connectivity includes Bluetooth® phone and media pairing alongside wired or wireless Apple CarPlay® integration. USB-C and MTP compatibility support smartphone connectivity through the inner fairing storage connection. Rider and passenger intercom functionality is standard when compatible headsets are installed. The system supports text-to-speech language functions and displays vehicle information such as air temperature, oil pressure, and EITMS status directly on the interface.
Hands-free mobile phone connectivity allows communication access through Bluetooth® pairing. Media playback supports USB sources and connected devices. The digital interface integrates gauge displays with entertainment controls, reducing the need for separate instrumentation.
Performance Measurements and Ride Dynamics
Performance testing indicates a balanced focus on touring stability and cornering capability. Lean angles measure 32 degrees on both the right and left sides, demonstrating symmetrical chassis behavior. The motorcycle uses measured torque delivery at lower RPM ranges to support steady acceleration and reduced shifting frequency during highway operation. Suspension tuning combined with wheelbase length supports straight-line stability at cruising speeds.
Fuel economy is rated at approximately 45 miles per gallon under estimated city and highway testing conditions. Combined with the 6-gallon fuel tank, this range supports long-distance travel capability. Handling stability results from the relationship between frame geometry, suspension damping, and wheel size distribution. The motorcycle’s dimensions and steering angles maintain predictable feedback during corner entry and exit.
