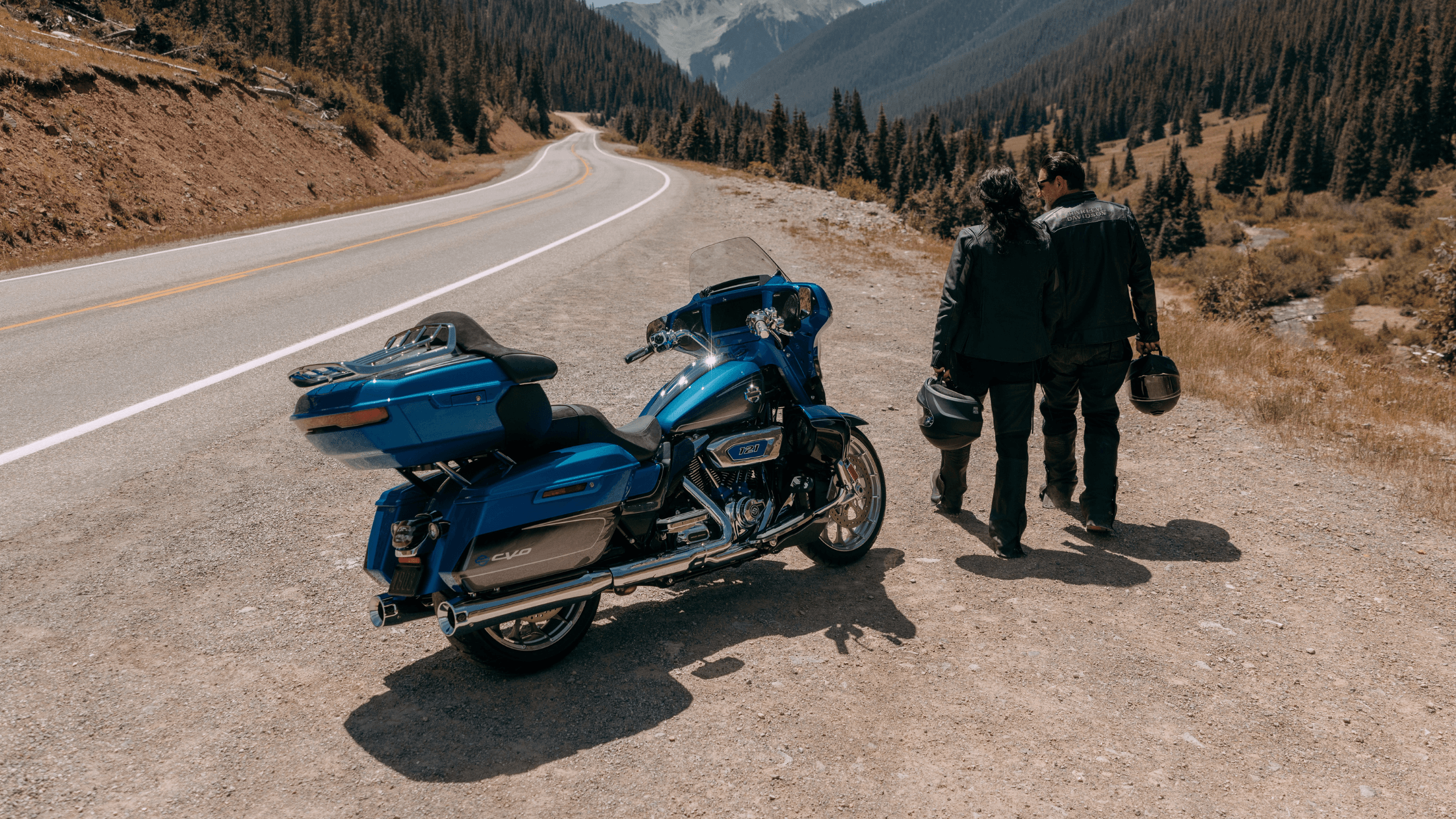

The 2026 Harley-Davidson® CVO™ Street Glide® Limited is designed as a full-size touring motorcycle built around measurable mechanical performance, integrated rider technology, and long-distance functionality. This model combines a large-displacement engine, advanced safety electronics, and a purpose-built chassis configuration intended for stability and controlled handling under touring conditions. The technical design prioritizes structural integrity, predictable power delivery, and rider interface clarity through digital systems. All specifications align with a platform intended for sustained highway travel while maintaining responsive control at varying speeds and loads.
Dimensionally, the motorcycle measures 103.3 inches in length, with an overall width of 40.7 inches and an overall height of 56.7 inches. The wheelbase extends to 64 inches, which contributes to directional stability and straight-line tracking. The rake angle is set at 26 degrees with a fork angle of 29.25 degrees and 6.7 inches of trail, producing steady steering response consistent with a touring-focused layout. Seat height measures 26.4 inches when laden and 29.1 inches unladen, supporting controlled stops and manageable low-speed operation for a large touring motorcycle. Static ground clearance is rated at 5.5 inches, maintaining balance between cornering clearance and rider accessibility.
Engine Output and Mechanical Performance
The engine configuration is centered around the Milwaukee-Eight® VVT 121 platform. This engine features a displacement of 121 cubic inches, equivalent to 1,977 cc, with a bore of 4.075 inches and a stroke of 4.625 inches. The compression ratio is listed at 11.4:1, allowing efficient combustion and consistent torque generation across the operating range. The valvetrain uses pushrod-operated overhead valves with hydraulic self-adjusting lifters and four valves per cylinder. This setup reduces valve maintenance requirements while maintaining airflow efficiency and reliable operation over long-distance riding intervals.
Fuel delivery is managed by Electronic Sequential Port Fuel Injection, providing controlled throttle response and consistent fueling under different load conditions. The air intake uses a washable fiberglass air cleaner, which supports reusable maintenance and sustained airflow efficiency. Exhaust flow is routed through a 2-1-2 dual exhaust system with tapered mufflers, engineered to balance torque output and rumble control.
Output measurements show 139 ft-lb of engine torque at 3,000 rpm and maximum power rated at 115 horsepower, or 86 kW, at 4,500 rpm. These values indicate strong low- and mid-range performance suitable for maintaining steady acceleration with passenger and cargo weight. Torque testing follows J1349 methodology, ensuring standardized measurement conditions. The lubrication system is pressurized and dry-sump, supporting engine durability through improved oil circulation and heat control during extended operation.
Drivetrain Configuration and Transmission Dynamics
The drivetrain integrates a chain-driven primary drive and a belt-driven final drive. The primary drive uses a 34/46 ratio, while the final drive uses a 32/68 ratio, establishing balanced power transfer and reduced maintenance demands associated with belt systems. Clutch operation is controlled by a mechanically actuated 10-plate wet clutch featuring Assist and Slip functionality. This design reduces lever effort during operation and improves rear-wheel stability during downshifts by limiting abrupt torque transfer.
The transmission of the 2026 Harley-Davidson® CVO™ Street Glide® Limited uses a six-speed Cruise Drive® system designed for long-distance efficiency. Gear ratios progress from 9.593 in first gear to 2.875 in sixth gear, allowing strong initial acceleration while reducing engine speed during highway cruising. This spacing supports smoother transitions between gears and contributes to reduced rider fatigue during sustained travel. The drivetrain configuration prioritizes consistent engagement, durability, and predictable throttle-to-wheel response.
Structural Design and Chassis Construction
The chassis relies on a mild steel tubular frame incorporating a two-piece stamped and welded backbone. Cast and forged junctions reinforce key stress points, and twin down-tubes provide structural rigidity necessary for heavy touring loads. The rear frame uses a bolt-on design with forged fender supports, supporting serviceability and strength. The swingarm construction also uses mild steel with two-piece drawn and welded sections reinforced by forged junctions.
Suspension design supports both comfort and stability. The front suspension uses 47 mm inverted forks that improve rigidity and reduce flex during braking and cornering. Rear suspension consists of dual adjustable emulsion shocks, including remote preload adjustment on the left shock and threaded preload adjustment on the right. This configuration allows compensation for passenger weight and luggage without complex mechanical adjustments.
Suspension travel is rated at 4.6 inches in the front and 3 inches in the rear. These values emphasize controlled movement and stable ride behavior rather than aggressive suspension motion. The overall setup reflects touring priorities by reducing excessive pitch while maintaining comfort over long distances.
Wheels, Tires, and Handling Characteristics
Wheel construction uses dual-grain chrome 14-spoke designs for both front and rear wheels. The front wheel measures 19 inches in diameter and 3.5 inches in width, while the rear wheel measures 18 inches in diameter and 5 inches in width. Tire configuration includes a Dunlop® Harley-Davidson® Series D408F front tire sized 130/60B19 and a D407T rear tire sized 180/55B18. This pairing balances front-end precision with rear traction support.
Lean angle capability is measured at 31 degrees on both the left and right sides. These figures indicate a geometry setup that maintains touring stability while allowing controlled cornering. The overall design targets predictable handling rather than aggressive sport characteristics, aligning with the intended use for long-distance travel.
Braking Performance and Control Systems
Braking hardware consists of dual front floating rotors paired with four-piston fixed dual radial-mounted calipers. The rear system uses a fixed rotor with a single axial-mounted caliper. Front rotor diameter measures 12.6 inches with a thickness of 0.18 inches, while the rear rotor diameter is 11.8 inches with a thickness of 0.28 inches. This configuration supports balanced braking force distribution across both wheels.
Anti-lock Braking System functionality is included as standard equipment. Electronic Linked Braking assists in distributing braking force for improved control. Additional safety integrations include Traction Control System, Drag-torque Slip Control System, Vehicle Hold Control, and Tire Pressure Monitoring System. These systems work together to maintain stability during acceleration, braking, and low-speed stops on inclined surfaces.
Cornering-enhanced systems include Cornering Enhanced ABS, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control System, and Cornering Drag-Torque Slip Control. These features use vehicle dynamics data to adjust control parameters while leaning, improving predictability during cornering maneuvers.
Electrical Architecture and Lighting Integration
The electrical system uses a sealed maintenance-free 12-volt battery rated at 28 amp-hours and 405 cold cranking amps. Charging capacity is managed by a three-phase 58-amp system capable of generating up to 754 watts at 13 volts. The starting system uses a 1.6 kW electric motor with solenoid shift engagement, designed for consistent startup reliability.
Lighting systems rely entirely on LED technology, including headlamps, tail and stop lights, and front and rear turn signals. LED systems improve visibility while reducing electrical consumption and extending service life compared with traditional bulb configurations. Gauges are digitally integrated into the main display, consolidating rider information into one viewing area. A USB-C electric power outlet rated at 15 watts is located within the media storage compartment for accessory charging.
An embedded GPS navigation system is included and integrated into the display, providing navigational support through onboard functionality connected to Wi-Fi hotspot capability.
Infotainment and Rider Interface Systems
The infotainment system of the 2026 Harley-Davidson® CVO™ Street Glide® Limited operates on Skyline™ OS and uses a 12.3-inch full-color TFT display. This interface consolidates vehicle data, audio controls, navigation, and connectivity features. The large display format enhances readability and simplifies operation while riding. Digital integration reduces the need for separate instrumentation and external devices.
The audio system includes six speakers positioned throughout the motorcycle, including fairing-mounted, Tour-Pak®, and lower fairing locations. Audio output is rated at 125 watts for four channels and 150 watts for two channels, supporting consistent audio delivery at touring speeds. AM and FM radio are standard, and media playback is supported via USB connections.
Bluetooth® connectivity allows integration of phone and media devices as well as headset communication. Rider and passenger intercom functionality is included, with voice activation compatibility for supported headsets. Apple CarPlay® connectivity is available through wireless or wired connections, allowing device integration directly into the display environment. USB-C and smartphone compatibility provide additional options for media access and charging.
Capacity, Weight, and Touring Functionality
Fuel capacity is rated at 6 gallons, with a reserve warning activated at approximately 1 gallon remaining. Oil capacity with filter is listed at 5 quarts, while transmission capacity is 1 quart and primary chain case capacity is 1.1 quarts. Coolant capacity measures 0.82 quart. These capacities support long-distance operation and consistent maintenance intervals.
Weight specifications indicate 882 pounds as shipped and 919 pounds in running order. Gross vehicle weight rating is listed at 1,360 pounds, allowing carrying capacity for passenger and cargo requirements. Luggage volume totals 4.8 cubic feet, providing integrated storage designed for extended touring use.
Fuel economy is estimated at 45 miles per gallon based on city and highway testing methodology. This figure supports extended riding range between fuel stops and contributes to long-distance usability.
